Symptom Related Diagnostic Procedures

Checking clicking or rattling sound when AUX input is selected

Checking clicking or rattling sound when AUX input is selected
This applies to the following vehicles:
- C30, structure week 200637- 200928.
- C70 (06-), structure week 200620 - 200945.
- S40 (04-), structure week 200620 - 200928.
- V50, structure week 200620 - 200928.
When AUX input is selected and the audio volume is set to approx. 50% or more, a clicking or rattling sound may be heard if no media player is connected or between the song tracks when a media player is connected.

Action

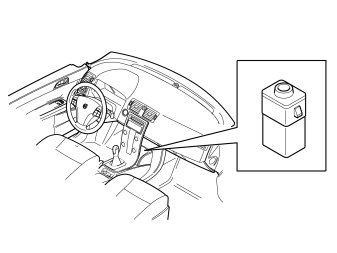

Install a new AUX plug. See VIDA for instructions.

Fault symptom
Audio other/Other audio problems





Has the fault been remedied?

Yes - FAULT FOUND

No - Checking clicking or rattling sound when AUX input is selected

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking clicking or rattling sound when AUX input is selected

-------------------------------------------------

Checking clicking or rattling sound when AUX input is selected
Install a new service cable. See VIDA for instructions.

Has the fault been remedied?

Yes - FAULT FOUND

No - Fault-tracing information

-------------------------------------------------
