Satellite radio, Sirius

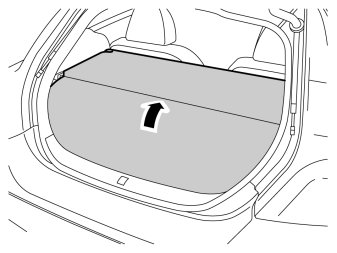

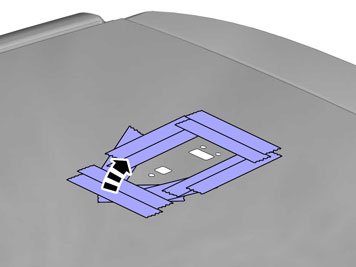

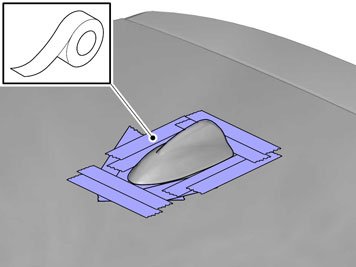

- Apply tape to the roof, around the antenna cover, to avoid paint damage when it is cut off.

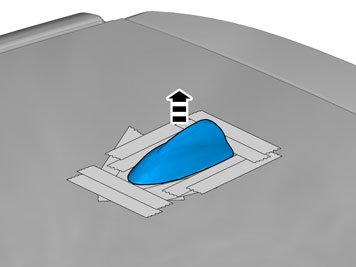

- Remove the antenna by cutting it all the way around.
- Use special tool: 9512333 Handle
- Use special tool: 1159785 Cutting wire 0.5 mm

Caution! Pull evenly to prevent paint damage.

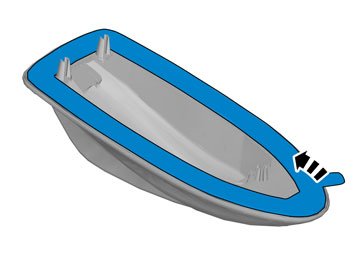

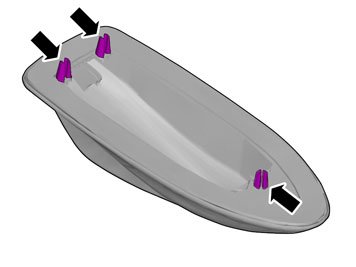

Caution! There are three locating pins on the cover, ensure that these are not cut off.





- Remove the cover.





- Remove the antenna





- Remove the tape residue from the roof.

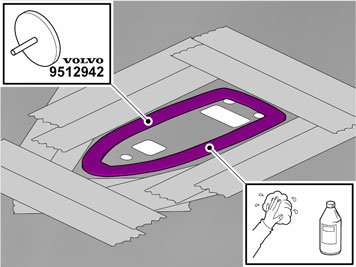

- Use special tool: 9512942 Circular cutting tool
- Clean the surface of the roof where the cover is to be located.
- Use: Isopropanol
- Wipe dry





- Remove the tape residue from the cover.

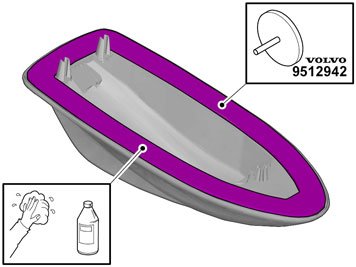

- Use special tool: 9512942 Circular cutting tool
- Clean the surface of the cover where the tape is to be located.
- Use: Isopropanol
- Wipe dry





- Remove the tape

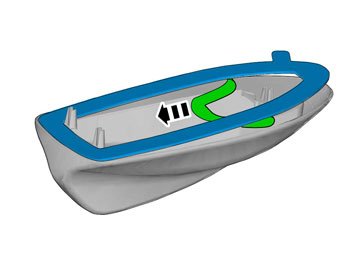

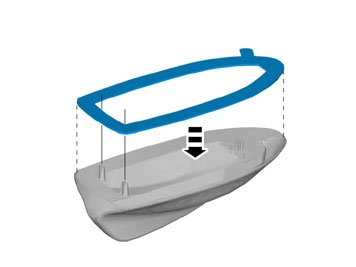

- Apply tape to the cover





- Hold the tape in position while removing the protective tape.

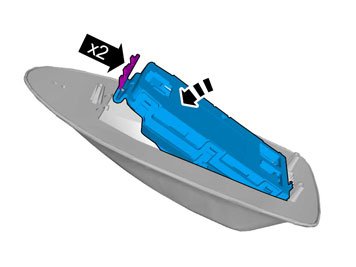

- Take the antenna from the kit. Secure the antenna in the cover. Ensure that the antenna engages properly.





- Remove the tape's protective tape.

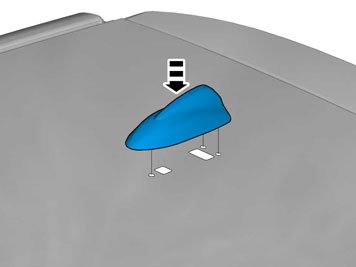

- Align the antenna's locating pins in the corresponding holes in the roof and press the antenna into place.

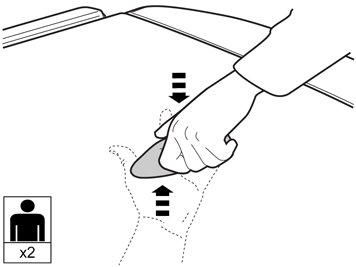

Note! To achieve a good result, two people are needed to press the antenna into place. One of the two must press against the inside of the roof to prevent buckling when the antenna is pressed into place.

Caution! Maintain pressure on the antenna for at least 30 seconds so that the tape adheres properly.

Note! The tape must be compressed to half its original thickness for 2-3 seconds to activate the bonding agent in the tape and achieve maximum wetting of the surface that the tape is to adhere to.





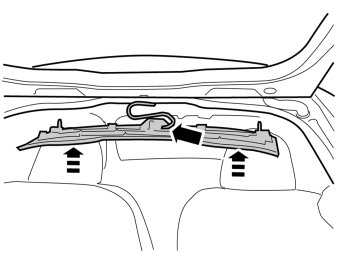

- Connect all connectors color to color in the antenna. Check that the connector catches engage.

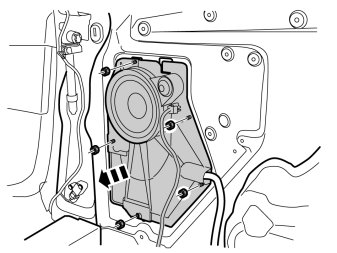

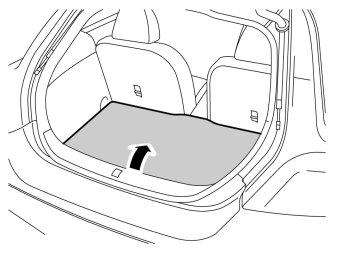

- Remove the five nuts in the speaker unit.
- Remove the unit. Put it to one side.





- Remove the absorbent in front of the amplifier.

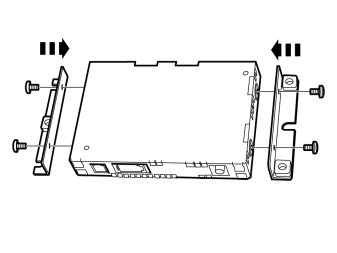

- Take brackets and receiver from the kit. Assemble as illustrated and tighten using the four screws.

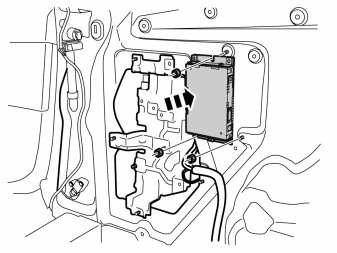

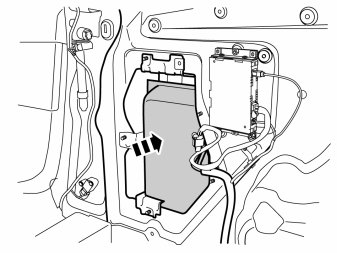

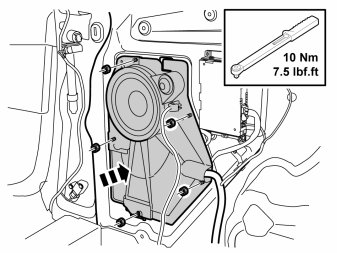

- Take three nuts from the kit and tighten the receiver unit to the body. Torque tighten to 10 Nm (7.5 lbf.ft.).

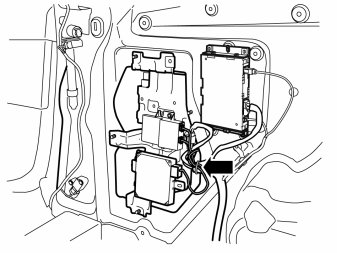

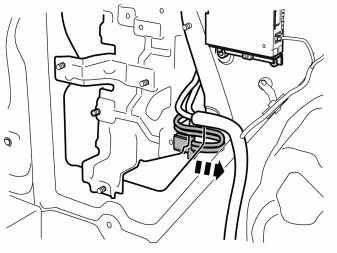

- Connect the routed connectors to the receiver, black for 12 V and gray for the antenna. They are located at the thick cable harness by the loudspeaker/amplifier.

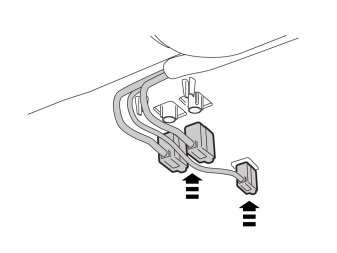

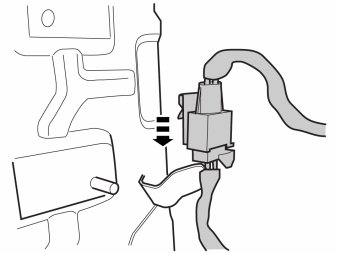

- Disconnect the connector on the fiber-optic cable at the bottom of the amplifier.

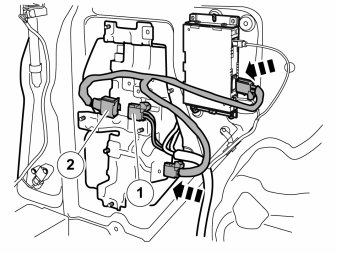

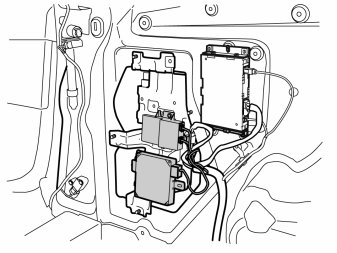

- Take the fiber-optic cable from the kit. Connect the connector on the fiber-optic cable that was disconnected from the amplifier (1) to the female connector (2) on the adapter cable.
- Connect the connector on the longer of the cable ends to the receiver and the shorter cable to the amplifier.

Note! The fiber-optic cables must not be bent to a radius less than 30 mm (1 3/16 ").





- Press the fiber-optic joint onto the edge of the amplifier.





If the car has GPS and/or TMC receiver, connect the fiber-optic adapter cable in the same way as before, directly to the amplifier.





- Clamp the cable joint using cable ties at the existing cables.

Note! Do not damage the fiber-optic wiring.















Note! There are ten clips on the reverse of the panel that must engage in the body. Take care when aligning so that the clips do not break. Broken clips must be replaced with new ones.

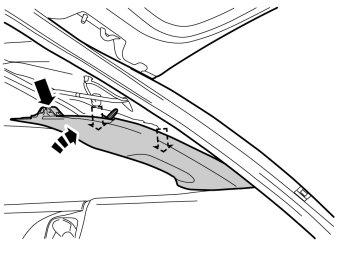

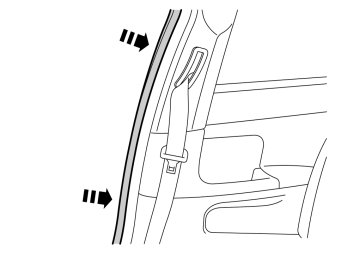

- Reinstall the side panel by first aligning it on the sill at the front edge and then pressing it against the body side, ensure that all clips engage.
- Tighten the panel using existing screws.

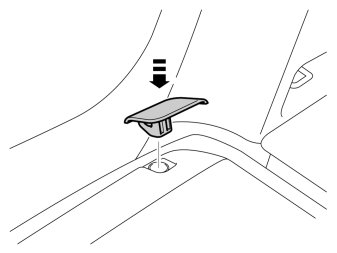

- Reinstall the panel with the safety clip

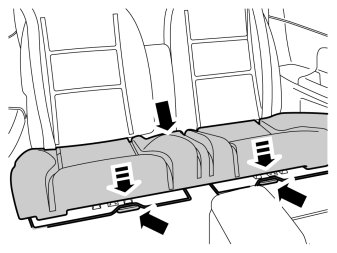

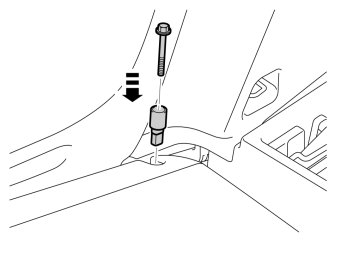

- Secure the backrest in the right-hand mounting with the screw and lock pin.
- Tighten the backrest and check that it is securely in its mountings. Torque tighten the screw to 15 Nm (11 lbf.ft.).

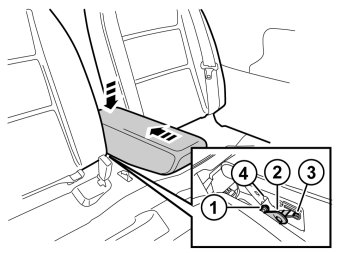

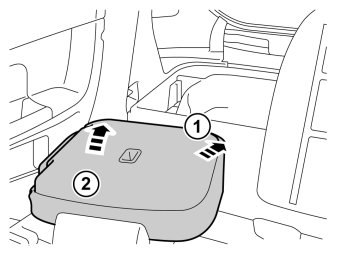

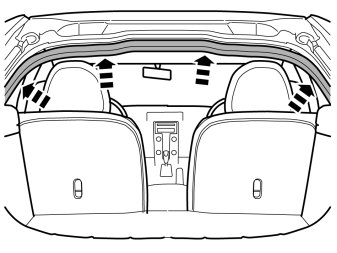

- Reinstall the central arm rest by grasping each end, moving it up towards the backrest lugs (1) and aligning the holders (2) in the backrest's sides in the central arm rest's cut-out (3).
- Then press the central arm rest down at the rear edge so that the lugs (1) engage in the cut-out (4). A click should be heard when the central arm rest is secured.


















- Download software (application Sirius sat radio) for the accessory's function
