Navigation system, portable, installation kit TMC
Equipment
Kit contents
Operation number: 39732
Information
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.
Set the ignition key to position 0.
Removal

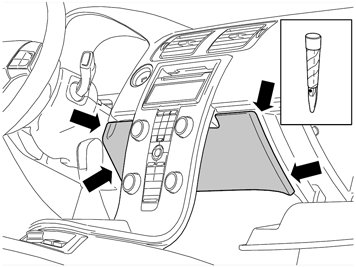

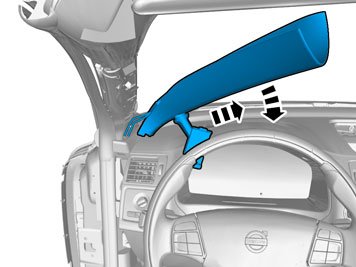

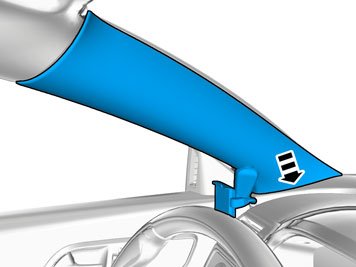

Remove the panel.

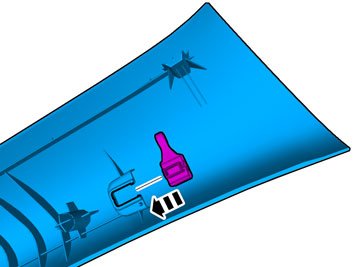

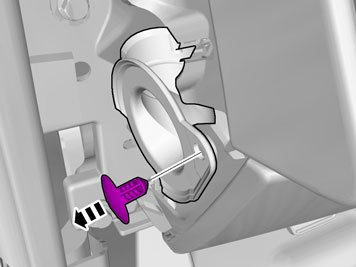

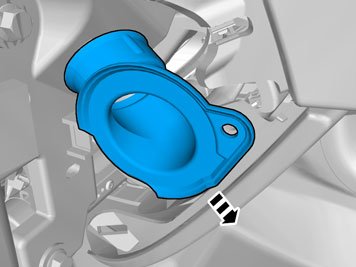

Remove the clip.

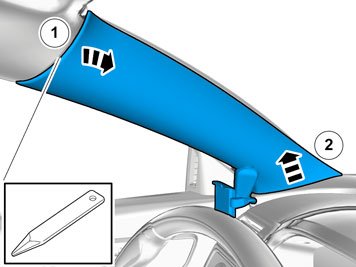

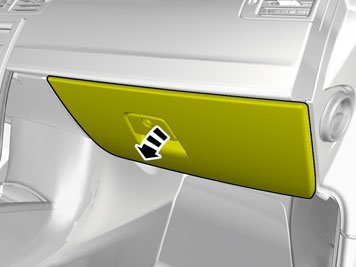

Remove the panel.

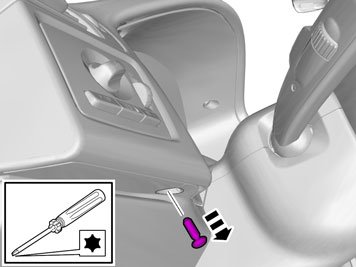

Remove the screw.
Remove the screws.

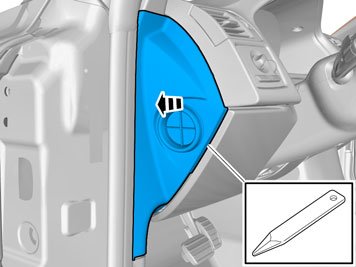

Remove the panel.

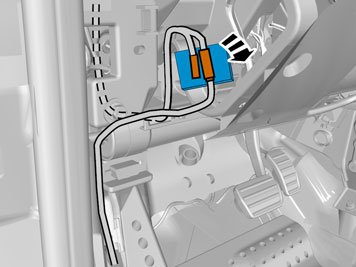

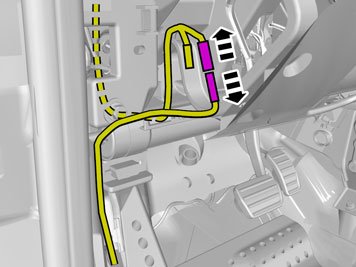

Disconnect the connectors.

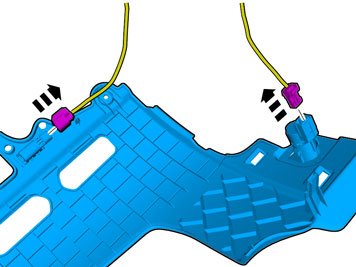

Remove the cable tie(s).

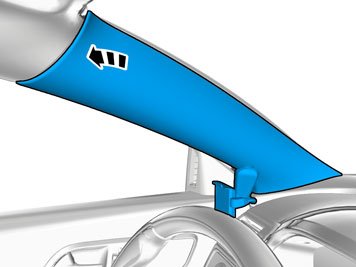

Detach the panel.

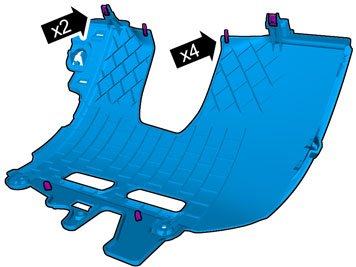

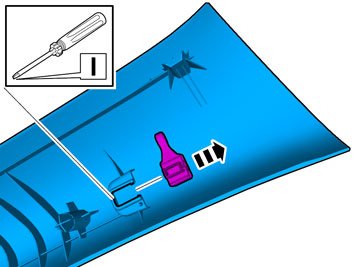

Unhook the clip(s).

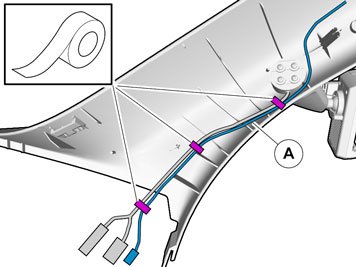

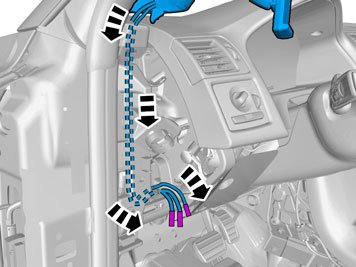

Pull the wiring through.

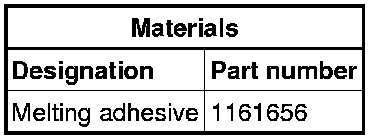

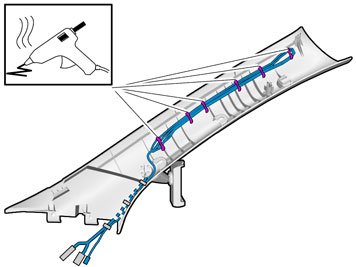

Use: Melting adhesive, 1161656

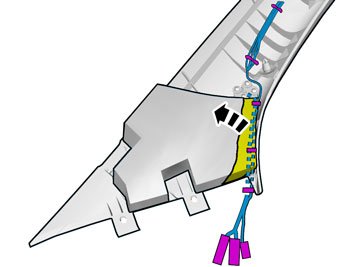

Fold the insulation to one side.

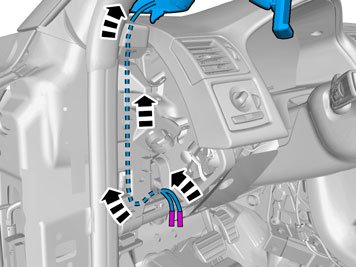

Pull the wiring through.

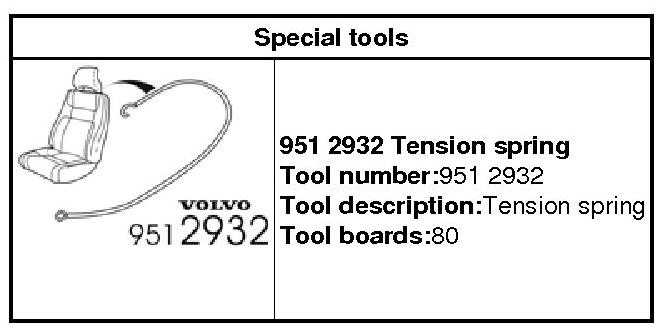

951 2932 Tension spring 951 2932 Tension Spring
Install the panel.

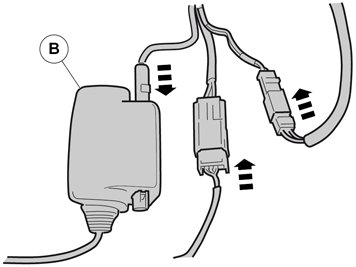

Connect the connectors.
Tear off the excess foam tape.

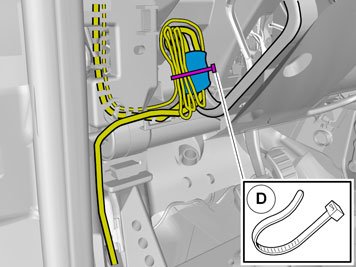

Clamp the cables and connectors to the existing cables to prevent noise.
Reinstall the removed parts in reverse order.
