Navigation Display: Service and Repair

Display navigation and entertainment

Special tools:
951 2943 L-hook 951 2943 L-Hook

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off




Ignition off.

Removal

Removing the display




Remove the speaker grille. Use: 951 2943 L-hook 951 2943 L-Hook.

Caution! Do not damage the dashboard.

Remove:

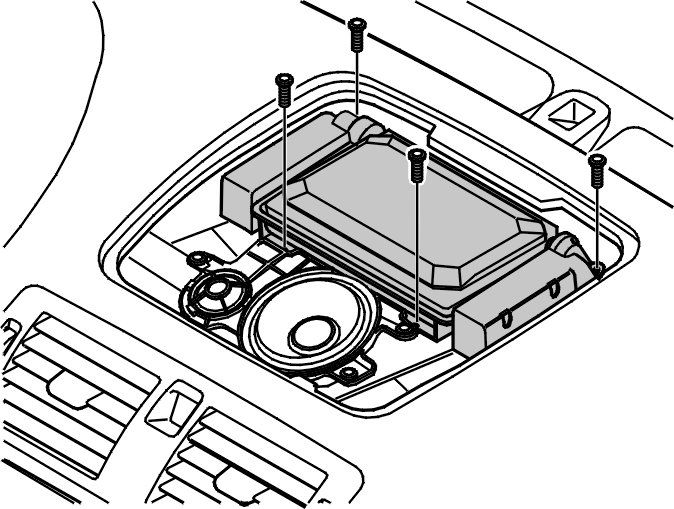

- the 4 screws
- the connector
- the display.

Installation

Installing the display

Install:
- the 1 connector
- display
- the 4 screws
- the loudspeaker grille.

Finishing

Function test
Test the function.
