Part 3












Mobility Connection Package, C30




- Lift out the console and turn it upside down.

Note! Protect hand brake and gear lever when removing and installing the tunnel console.





- Unplug the connector of the 12V socket.

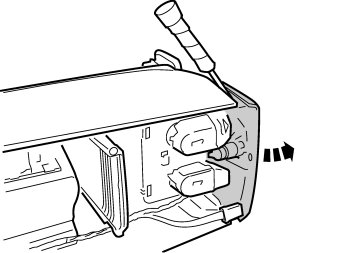

- Carefully bend loose the tunnel console's rear panel using a weatherstrip tool.

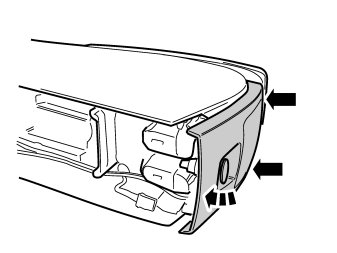

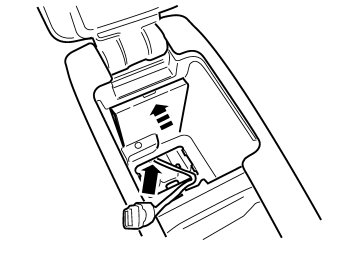

- Get the USB/iPod cable from the kit, insert the two contacts in the trailing edge of the tunnel console and into the storage compartment.

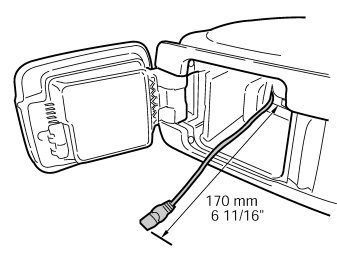

- Measure the length of the cable that is to be protrude from the bottom of the storage compartment.





- Push on the panel, ensuring the cable is not pinched.





- Take the cable harness from the kit.

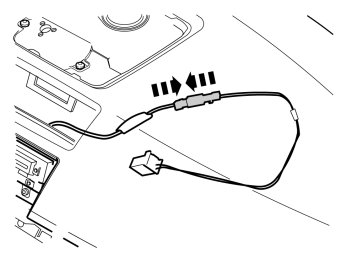

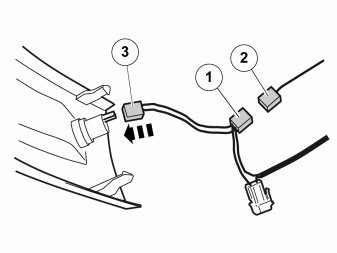

- Connect the cable harness connector (1) to the connector that was disconnected from the 12V socket (2).
- Connect the remaining connector (3) for the cable harness to the 12V socket.

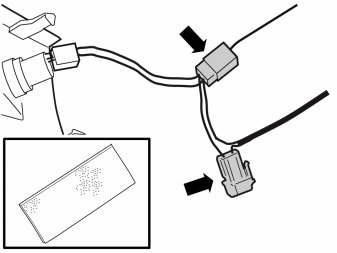

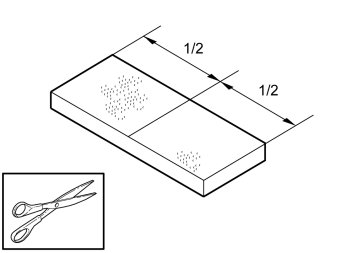

- Take a piece of foam tape from the kit and cut it in the centre
- Remove the protective film.





- Wrap the foam tape around the fuse holder and connectors.





- Reinstall the panel.

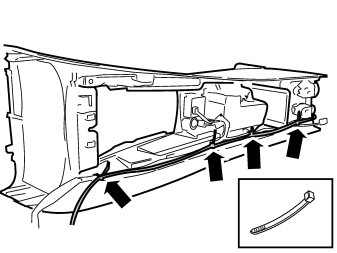

- Clamp in the cable harnesses to the existing cable harness using cable ties.

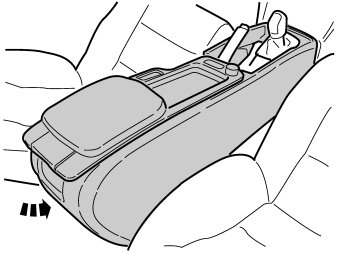

- Reinstall the tunnel console, but do not slide it forward so far that it covers the rear screw holes for the centre console's panel.
- Plug in the connectors at the leading edge.

Note! Protect the hand brake and gear shift when fitting the tunnel console.

Sections 68-71 apply to cars without loudspeaker grilles

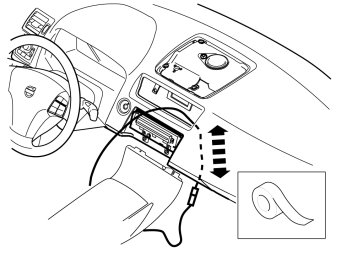

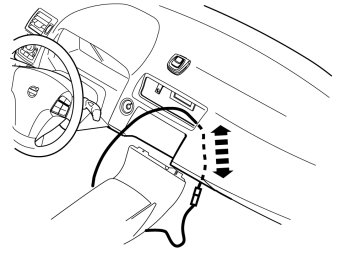

- Insert a wire spiral from the outlet where the air outlet was located and down to the right-hand side of the tunnel console.
- Tape the connector and a piece of the cable harness to the wire spiral.

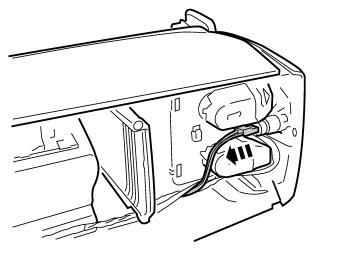

- Carefully pull the cable harness up through the hole for the air outlet.

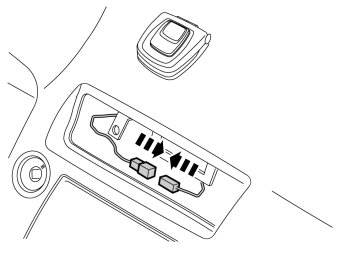

- Connect the cable from the cradle to the routed cable.
- Secure the two green connectors using a piece of butyl tape in a suitable place to prevent rattling.

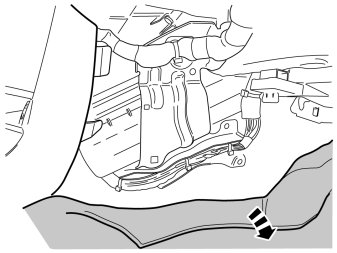

- Pull down all surplus cable and conceal under the floor mat.





- Connect the cable to the warning flashers.

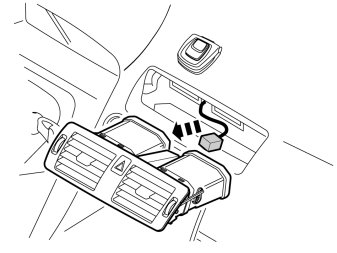

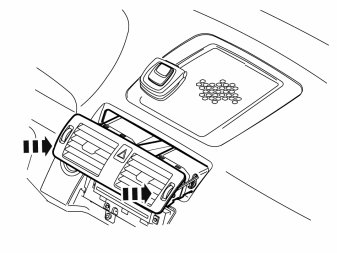

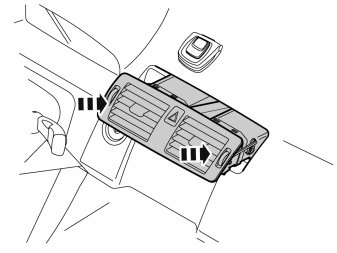

- Press the air outlets into place in the dashboard. Make sure the cable to the cradle is not pinched.

Sections 72-78 apply to cars with loudspeaker grilles




- Insert a wire spiral from the outlet where the air outlet was located and down to the right-hand side of the tunnel console.
- Tape the connector and a piece of the cable harness to the wire spiral.
- Carefully pull the cable harness up through the hole for the air outlet.





- Remove the short connection cable from the kit and connect to the routed cable harness.

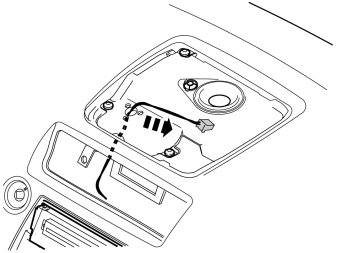

- Pull up the cable through the hole in the loudspeaker console.

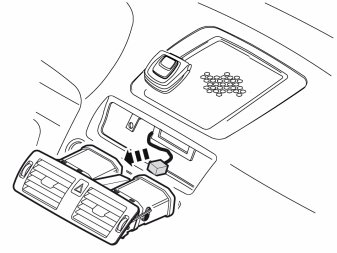

- Connect the connector in the routed cable to the connection on the cradle.






Note! Ensure the three screws fit in their holes before securing the grille.

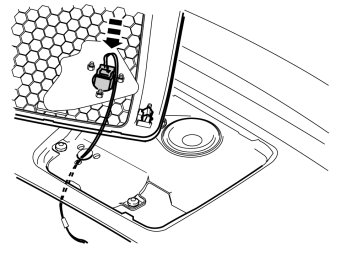

- Push the cable through the holes in the grille and loudspeaker console.
- Carefully push on the loudspeaker grille with the cradle on the loudspeaker console. File out the holes for the stud bolts if necessary.
- Remove the paper from inside the dashboard and the air ducts.
- Secure the two green connectors using a piece of butyl tape in a suitable place to prevent rattling.
- Pull down all surplus cable and conceal behind the floor mat.





- Connect the cable to the warning flashers.





- Press the air outlets into place in the dashboard. Make sure the cable to the cradle is not pinched.

Applies to all models




- Fold the carpet to the right of the center console.





- Take the cable harness from the kit.

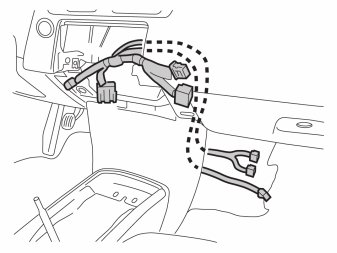

- Route the cables on the right-hand side of the centre console.

Note! The fiber cables must not be bent with a radius less than 25 mm (1"). Make sure the cables are routed so there is no risk of wear.





- Take the relay and two thick pieces of foam tape from the kit.
- Connect the connectors from cable harness A to the mute relay.
- Tape the foam tape pieces around the relay.

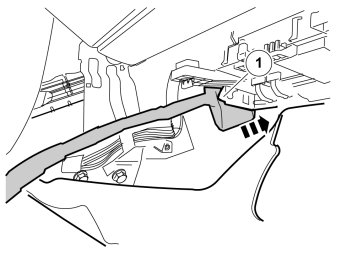

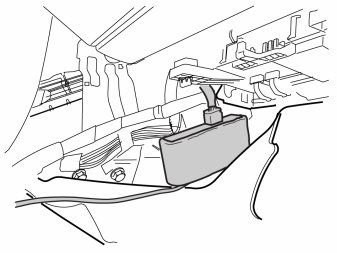

- Place the relay between the white metal bracket (1) and the climate unit, high up on the bulkhead partition.





- Take the control module and 2 pieces of foam tape from the kit.

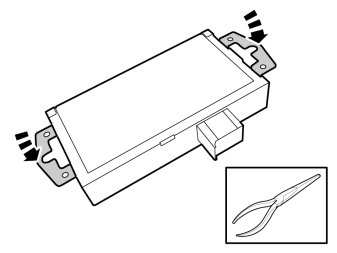

- Bend the mountings in on the control module.


Illustrations A and B




- Remove the protective film on the foam tape and attach as illustrated.









- Connect the USB and iPod connector and the fiber-optic cable's connector to the control module.
- Clamp the USB/iPod cable at the eyelet on the control module using a cable tie.

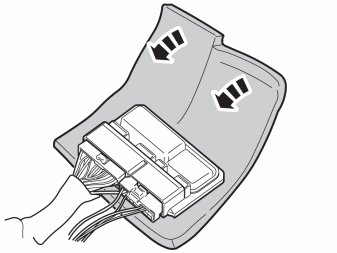

- Place the adapter between the carpet and the climate control unit as illustrated.

Note! Do not damage the fiber optic cable.

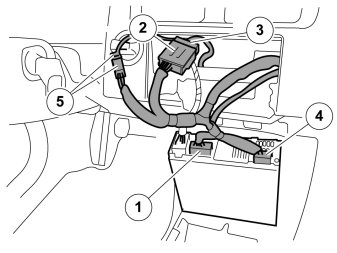

- Connect the gray connector (1) in the new cable harness to the corresponding socket in the media player.
- Connect the gray connector (2) in the new cable harness to the gray connector (3) which was detached from the media player.
- Plug in the connector (4) on the adapter cable's fiber cable to the media player.
- Plug in the remaining connectors (5) on the fiber cables to each other.
- Plug in the remaining connectors that were disconnected from media player.
- Take a 700 mm (27 9/16") long piece of foam tape and cut into three equal pieces. Tape around the connectors (2) and (3). And a little around the connectors (5).





- Position the connectors to the left in the opening so that they are not in the way when the media player is installed.
- Plug the remaining connectors which where detached into the media player.

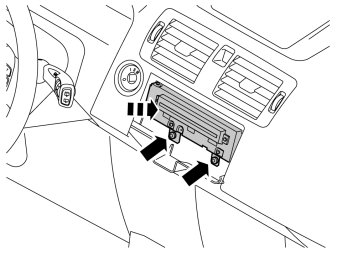

- Reinstall the media player and secure it.

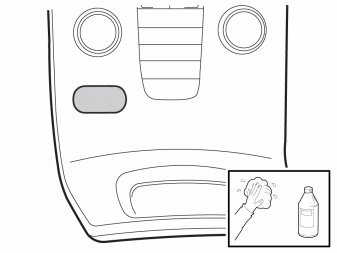

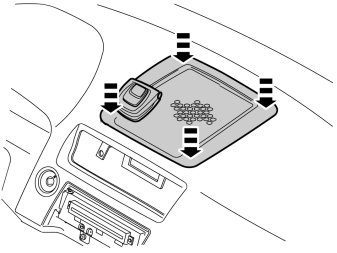

- Clean the area on the centre console as illustrated, which corresponds to the size of the double-sided adhesive tape. Use a solution of 25% isopropanol and 75% water, as well as a lint free cloth. Wipe dry carefully, do not rub.
- Allow to dry.

Note! In cases where the area is heavily soiled or treated with cockpit shine, first clean using a washing up detergent.

Applies to right-hand drive cars

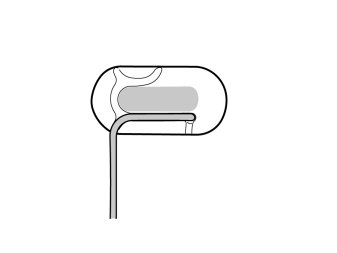

- Place the control panel cable in the groove as illustrated.

Applies to all models
