USB/iPod Music Player
USB/iPod Music Player

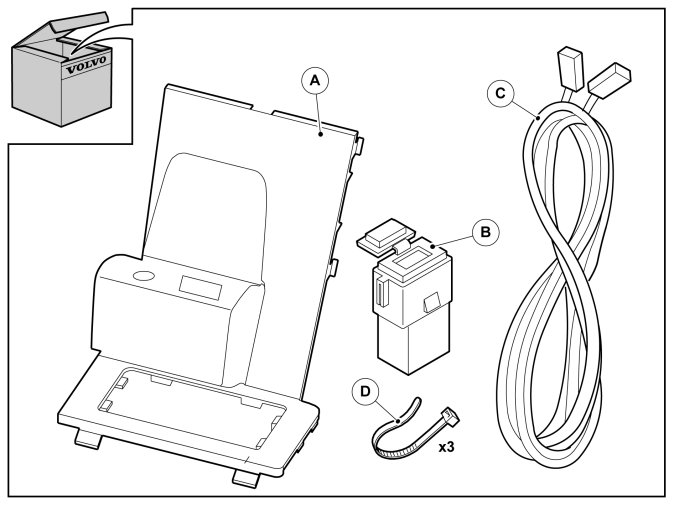

INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.
USB/iPod Music Player
- Turn the ignition key to position 0.
Note! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.
- Remove the surround from around the display and media player: Use a small screwdriver and press in the catch on one of the surround's upper corners. Carefully bend loose the surround on the same side with a plastic weatherstrip tool.
Note! Do not damage the panel and dashboard.
- Repeat the procedure for the other side and then fold the surround backwards into the vehicle. Pull the surround up until it detaches.
Hint: If the panel is difficult to remove, press the panel on both sides again and repeat the procedure starting at the other side.
- Remove the ignition control module (ICM). It is secured by hidden clips, 2 pcs.
Hint: Grip with both hands and pull.
- Disconnect the two connectors. Put the display to one side.
- Apply the handbrake.
- Detach the panel by prying it up (1) using a weatherstrip tool and then pull it off outwards (2).
- Fold up the tunnel console's armrest and remove the cover at the bottom.
- Remove the two screws.
Steps 7-12 apply to the C70
- Remove the rear seat cushion by first pressing the outer edges of the cushion backwards and then by pulling them upwards so that the outer hooks release.
- Lift the cushion straight up in the middle so that the inner hooks release.

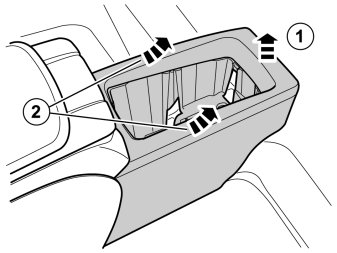

- Remove the cup holder from the rear tunnel compartment by prying at the leading edge and pressing in the catches, first at the leading edge and then on the sides.
- Remove the screws.
- Remove the rear tunnel compartment by pulling it upward/rearward so that it releases from the hooks.
- Unplug the connector at the trailing edge of the tunnel console.
Applies to all models
- Remove the two screws along the front edge of the tunnel console.
- Remove the front storage compartment by prying it off at the front edge using a weatherstrip tool and lifting it out.
- Carefully lift the catches at the front edge of the tunnel console.
Hint: Use special tool, P/N 9995919.
- Hold up the lock catch and at the same time slide the entire tunnel console back 20 mm, so that the two rear screws in the centre console are accessible.
- Remove the two screws.
Applies to cars with manual gearbox
- Remove the gear selector lever boot from the center console. First pry it off at the front edge using a weatherstrip tool and then unhook it at the rear edge.
Applies to all models
- Remove the two screws holding the centre console's panel to the dashboard.
- Loosen the connector to the centre console at the rear.
- Remove the center console.
- Lift up the tunnel console and pull it back slightly.
- Unplug the big gray connector at the front.
- Lift out the console and turn it upside down.
Note! Protect hand brake and gear lever when removing and installing the tunnel console.

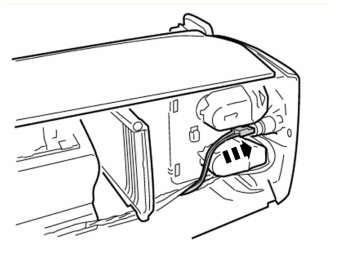

- Unplug the connector of the 12V socket.

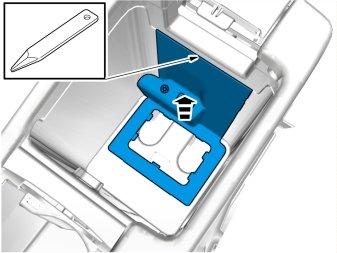

- Carefully bend loose the tunnel console's rear panel using a weatherstrip tool.

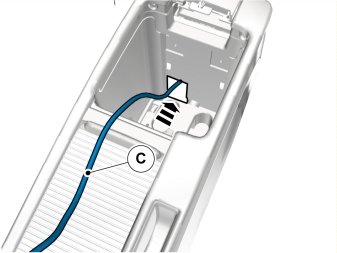

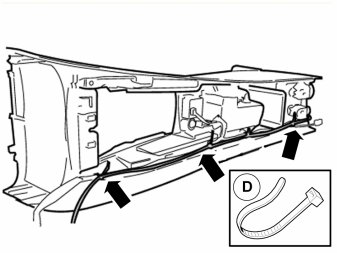

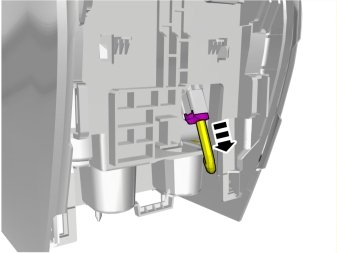

- Clamp in the cable harness to the existing cable harness using cable ties.
- Reinstall the panel.
Illustrations A and B
- Reinstall the tunnel console, but do not slide it forward so far that it covers the rear screw holes for the centre console's panel.
- Connect the connectors at the leading edge.
Note! Protect the hand brake and gear shift when fitting the tunnel console.
- Remove the two clips securing the cables to the media player by first pressing them to the sides and then pulling them away downwards.
Note! Be careful with the optic cables so that they are not bent or stretched.
- Remove the two screws from the bottom of the media player.

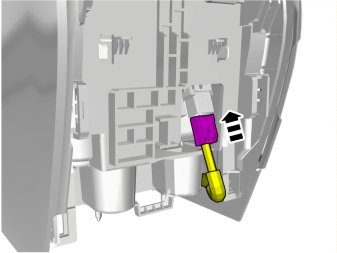

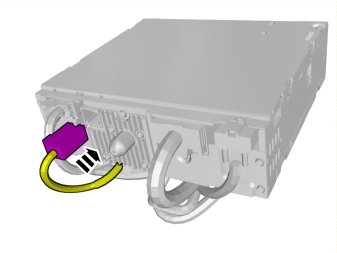

- Pull out the media player and locate the 4-pin foam coated connector.
Note! Note how the wiring is packed on the reverse. The fiber optic cables are easily damaged and must not be bent to a radius less than 25 mm (1").
- Remove the foam tape and connect the connector to the media player.
Illustrations A and B
- Install the media player in the dashboard.

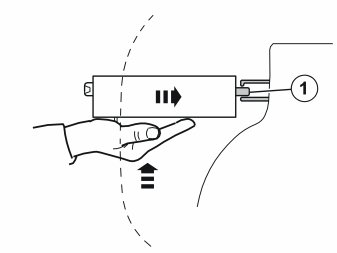

- Guide in the lug (1) at the rear of the media player with one hand. The lug must be in the corresponding hole.
- Tighten the media player using the two screws.
Note! Make sure that the fiber optic cable is routed so that it is bent to a radius of no less than 25 mm (1").
- Install the centre console, connect the green connector and fit the screws, two at the top and two on the rear edge.
Applies to cars with manual gearbox
- Install the gear selector boot in the center console starting at the rear edge.
- Slide the tunnel console forward so that the locking lug secures it. At the same time, guide in the floor carpet on the right and left-hand side.
Reinstall:
- the two screws at the front edge of the tunnel console.
- the panel at the parking brake.
- Reinstall the screws and cover.
- Reinstall the detached components in reverse order.
- Download the software for the accessory's function following the service information in VIDA.
