Signal Specification, Parking Assistance Module (PAM)

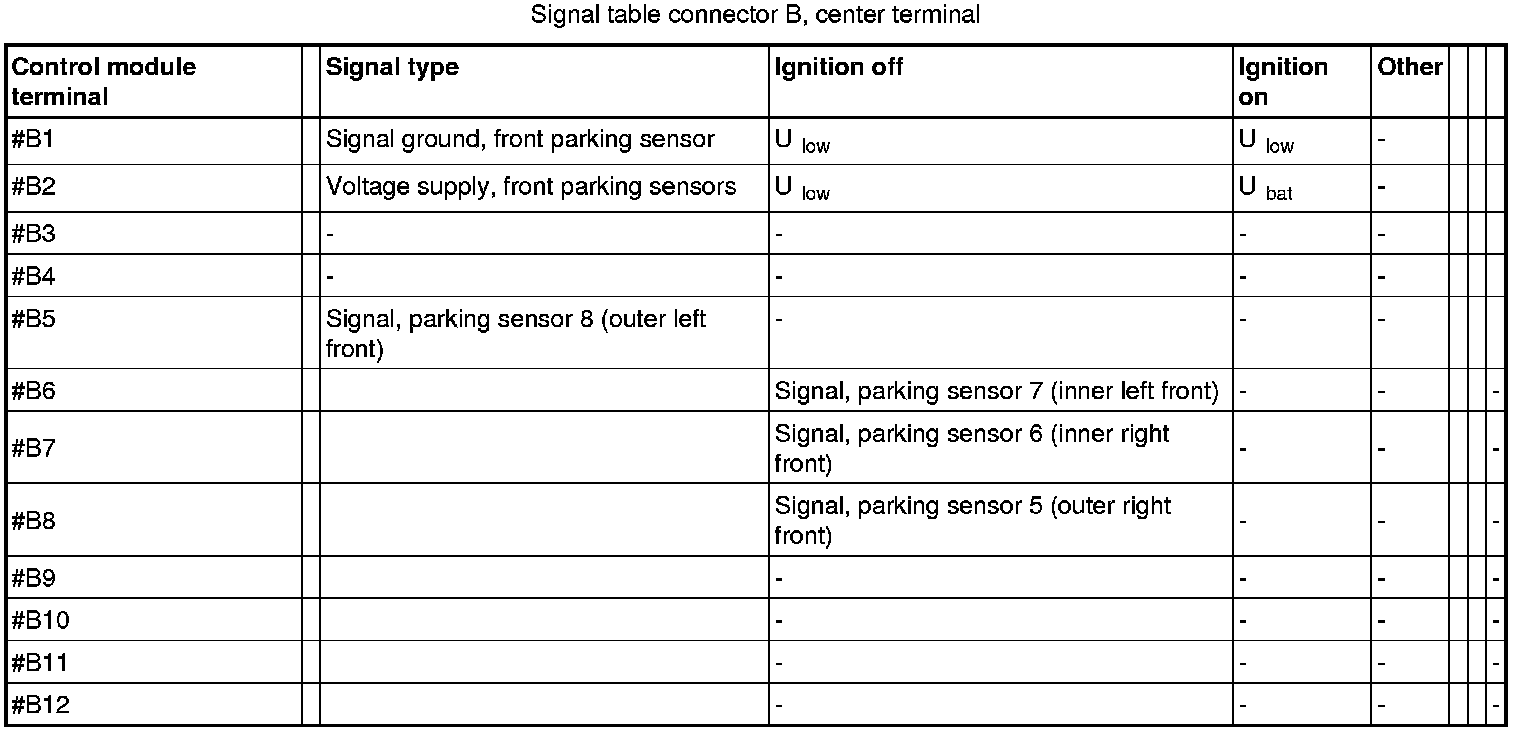

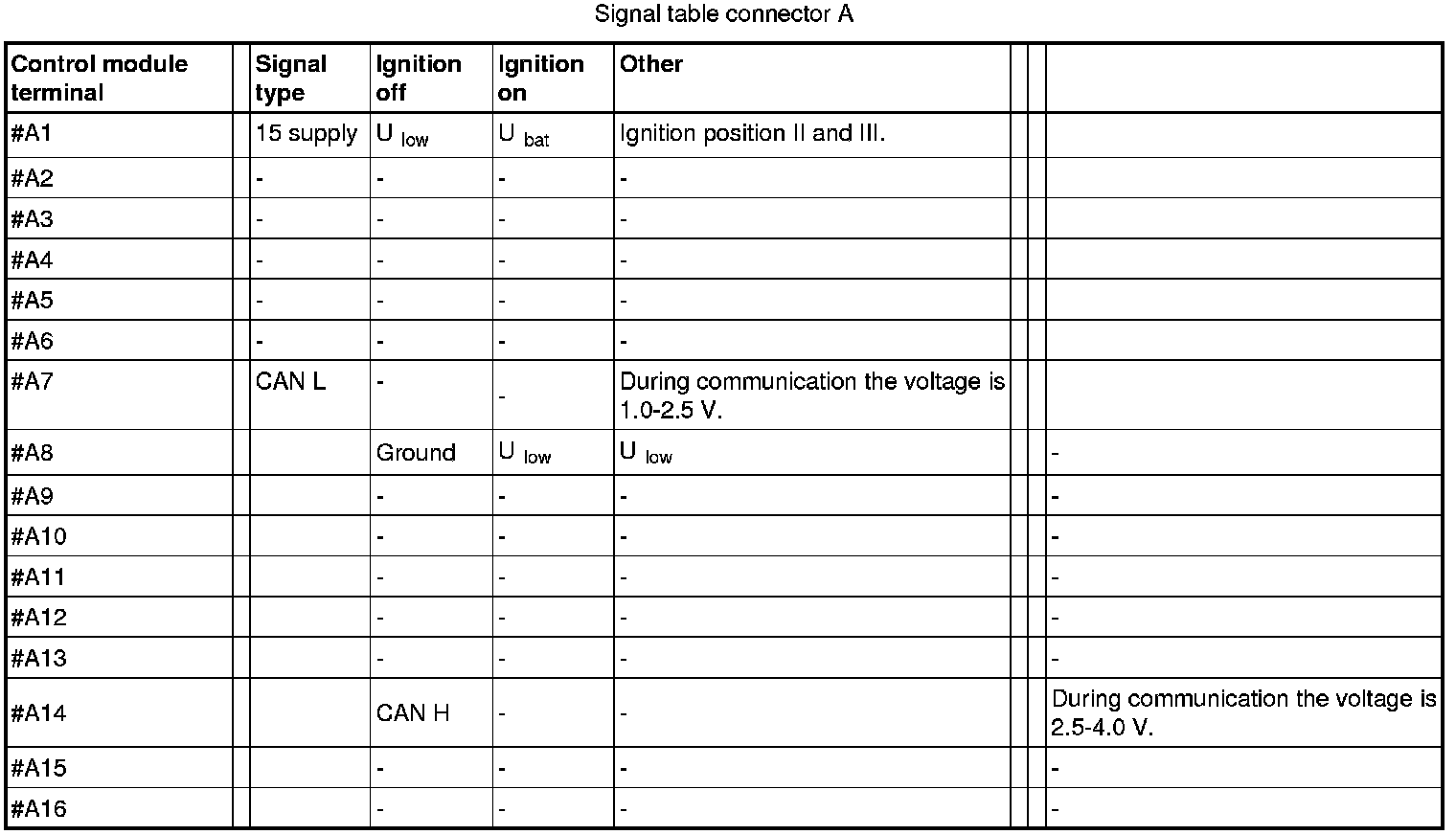

Signal specification

General
All values specified below are between the relevant terminal and terminal #A8 (power ground).

Note! It is important to check ground terminals before taking readings.
