Part 1

Parking assistance, rear, start/stop

INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Parking assistance, rear, start/stop

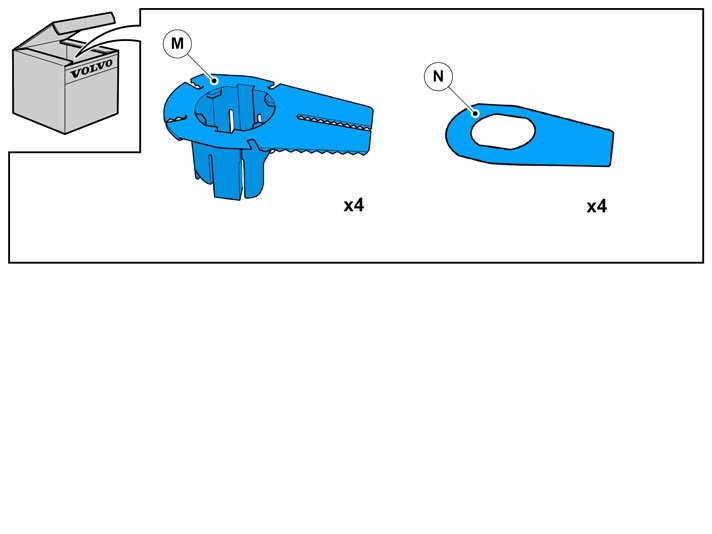

Note! There may be components in the accessories kit that are not used for this installation.

- Clean the sensors. Use: Isopropanol.
- Allow to dry.

- Carefully mat down the surface. Use Glasspaper, grade P1000.

- Clean the sensors again. Use: Isopropanol.
- Allow to dry.
- Avoid contact with the cleaned surfaces.

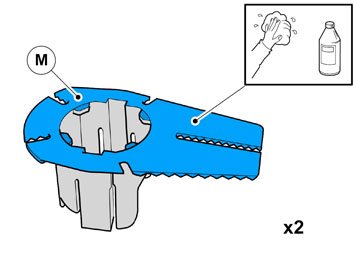

- Clean the cradles. Use: Isopropanol.
- Allow to dry.
- Avoid contact with the cleaned surfaces.

- Apply primer to the cleaned surface. Use: Bonding primer for plastic. P/N: 31335448.

Caution! Allow to dry at a temperature of at least +20°C for 10 min, before painting.

Note! Also read the instructions on the spray can.

Caution! Protect the connections' contact surfaces against paint.

- Paint the sensors in colour code 426.
- Use Volvo Touch-up paint. (Only use base coat.)
- Use: Volvo 2-K Varnish. P/N: 31335447.

Note! Also read the instructions on the spray can.

Caution! Protect the connections' contact surfaces against paint.

- Paint the sensors in the same colour code as the vehicle.
- Use Volvo Touch-up paint. (Only use base coat.)
- Use: Volvo 2-K Varnish. P/N: 31335447.

Note! Also read the instructions on the spray can.

- Paint the holders in the same colour code as the vehicle.
- Use Volvo Touch-up paint. (Only use base coat.)
- Use: Volvo 2-K Varnish. P/N: 31335447.

Note! Also read the instructions on the spray can.

Caution! The paint must have dried after the first application.

- Carry out on both sides.

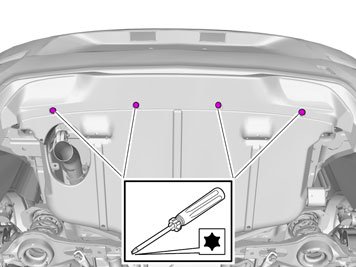

- Remove the screws.

- Carry out on both sides.

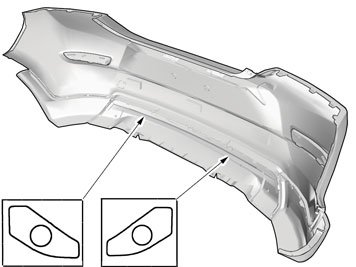

- Locate the 2 x markings on the inside of the bumper cover.

- Locate the 2 markings on the inside of the bumper cover.

- Mark center with a scribe.

1. - 3 mm (7/64")
2. - 10 mm (25/64")

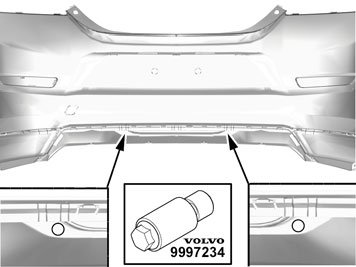

- Use special tool: P/N 9997234

Note! The hole tool's support sleeve must be on the inside, and the cutting part on the outside of the bumper casing.

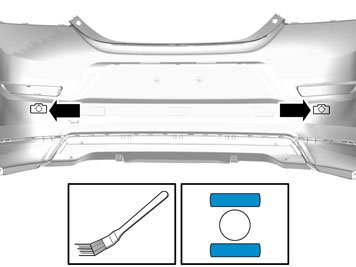

- Use special tool: P/N 9997392 Hole tool

Note! The hole tool's support sleeve must be on the inside, and the cutting part on the outside of the bumper casing.

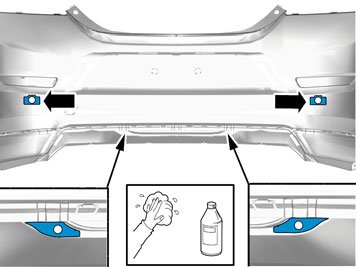

- Clean the surfaces. Allow to dry.
Use: Isopropanol

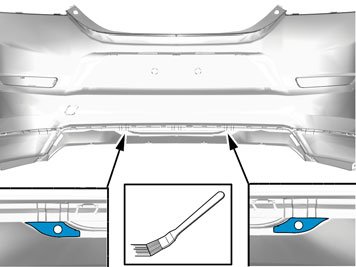

- Apply a thin and even layer of activator. Allow to dry for at least 10 minutes.
Use: P/N 8637076 Activator

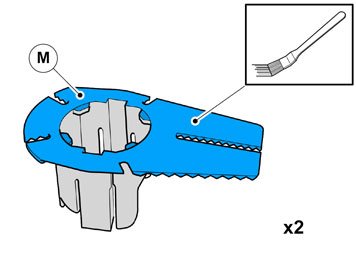

- Apply a thin and even layer of activator. Allow to dry for at least 10 minutes.
Use: P/N 8637076 Activator.

- Pull off the seat cushion for the rear seat, first at the front edge where it is secured by two cradles. Then at the rear edge where it is secured by one cradle.
- Remove the seat cushion.

- Fold the central arm rest forward.
- Remove the central arm rest by grasping each end and pulling upwards until it releases at the rear edge from the backrest's lugs (1).
- Then pull forwards until the holders (2) on the sides of the backrest have slid out of the corresponding cut-out (3) in the central arm rest.
