Part 2

Handsfree, Bluetooth




- Remove the remaining backing tape from the Velcro strip and press the microphone securely onto the ceiling panel as illustrated.

Note! Direct the microphone towards the driver.

Feed in any cable excess.





- Route the cable to the A-pillar and onwards to the glove compartment.
- Take three small tie straps from the kit and secure the cable at the A-pillar as illustrated.

Warning! Make sure that the routing of the microphone cable does not interfere with the function of the inflatable curtain.

- Refit the sun visor mountings.
- Reinstall the A pillar panel and weatherstrip.

Installing the control module





- Take the cable harness and control module from the kit. Connect the cable harness to the control module (1).
- Lock the catch (2).





- Get a thick foam tape from the kit and fasten it on the front of the control module. Fold up the foam tape around the corners and edges of the control module.





- Get three small pieces of foam tape from the kit and fasten these on the back of the control module.





- Detach the front sill molding by first pulling it backwards at the front edge and then straight up so that the clips release.





- Unscrew the clips holding the floor carpet.
- Fold aside the floor mat to access the bulkhead panel inside.

Note! Take care not to create folds in the carpet.





- Place the control module with the thick foam tape forward, against the bulkhead.





- Fold aside the cable harnesses (1) so that they do not end up between the control module and floor mat.
- Route the control module's cable harness under the cable harnesses (2) and on toward the tunnel console.

Connecting





- Fold the carpet to the right of the center console.






Applies to cars with internal amplifier
- Take the relay and two thick pieces of foam tape from the kit.
- Connect the connectors from cable harness A to the relay.
- Tape the foam tape pieces around the relay.






Applies to cars with internal amplifier
- Place the relay between the carpet and the climate control unit as illustrated.





- Connect the connectors as illustrated.

Applies to cars with internal amplifier
- 1. Connect cable harness A to the cable from the control module.

Applies to cars with external amplifier
- 1. Connect cable harness B to the cable from the control module.

Applies to all models
- 2. Connect the microphone
- 3. Connect the control panel
- Take one of the cut pieces of foam tape and tape around the connectors.





- Place the connectors and the excess wiring inside the center console.
- Fold back the carpet.





- Take two large tie straps from the kit and secure the cable from the microphone on top of the collision pipe.

Applies to cars with external amplifier
- Also secure the cable harness B, that is to be later routed back to the external amplifier.






Reinstall:
- gear lever gaiter, starting at the trailing edge.
- and slide the tunnel console forward so that the lugs secure it. At the same time align the floor carpet on the right and left-hand sides.
- the two screws at the front edge of the tunnel console.
- the panel at the parking brake.
- the two screws and the cover under the armrest.
- front storage compartment inside of the center console.
- and connect the display unit.
- the surround for the display.

Connecting, continued

Steps 56 - 82 apply to cars with external amplifier




- Detach the rear sill molding by first pulling it up at the front edge, and then unhooking it at the rear edge.





- Pull off the seat cushion for the rear seat, first at the rear edge where it is secured by one holder. Then at the front edge where it is secured by two holders.
- Remove the seat cushion.

Applies to right-hand drive cars
- Steps 57-68 must not be mirrored.





- Fold the central arm rest forward.
- Remove the central arm rest by grasping each end and pulling upwards until it releases at the rear edge from the backrest's lugs (1).
- Then pull forwards until the holders (2) on the sides of the backrest have slid out of the corresponding cut-out (3) in the central arm rest.





- Fold the backrest forward.
- Remove the cover for the backrest's right-hand mounting.





- Remove the screw and the locking sleeve.





- Fold the backrest away from the right-hand mounting.

Note! The backrest may be securely attached.

- Pull it out from the mounting at the arm rest and remove it.





- Pull off the rubber molding at the rear edge of the right-hand door opening.





- Detach the B pillar panel at the rear edge by prying the sides using a weatherstrip tool until the two clips release.





- Cut off the strap on the safety clip.
- Angle out the panel at the lower edge, and then unhook it at the upper edge so that the upper clip releases.





- Remove the screw from the right-hand panel in the rear seat.
- Carefully pull off the panel from the body side. It is secured by eleven clips on the inside.





- Disconnect the connector to the loudspeaker.
- Detach the clip for the cable harness.






Remove:
- the screw
- the five nuts
- the loudspeaker unit.





- Lift the unit straight out so that the bracket releases from the studs (1).
- Slide the unit forwards slightly (2), angle out the rear edge (3) and lift out.






Applies to left-hand drive cars

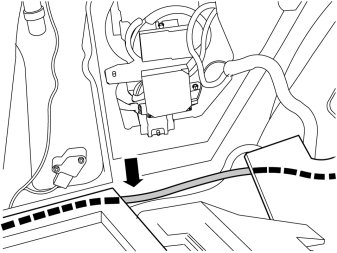

- Route cable harness B from the lower edge of the A pillar, continue under the floor carpet and under the seat support.






Applies to right-hand drive cars
- Route cable harness B from the lower edge of the A pillar, continue under the floor carpet and behind the large side panel.






Applies to right-hand drive cars
- Route the cable harness under the floor's insulation panel over to the right-hand side.





- Take the relay, two thick foam tape pieces and cable harness C from the kit.
- Connect the pre-routed cable harness B and cable harness C to the relay.
- Tape the foam tape pieces around the relay.

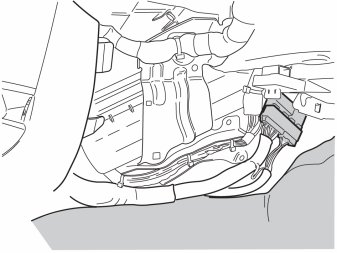

- Detach the large green connector from the amplifier.

Note! The location of the connector differs depending on the type of amplifier in the car.





- Connect the green connector (1) from cable harness C, to the corresponding socket in the amplifier.
- Connect the green connector (2) from cable harness C, to the green connector (3) that was disconnected from the amplifier.
- Take one of the cut pieces of foam tape and tape around connectors (2) and (3).





- Install the relay to the amplifier using a large tie strap (1) in the other hole from underneath.
- Secure the cable harness from the relay in the vehicle's ordinary cable harness using a small tie strap (2).
- Reposition the console with amplifier and tighten it.





- Route the cable harness from the relay by the vehicle's ordinary cable harness.
- Reinstall the loudspeaker unit and secure it.
- Plug in the connector.





- Place the excess cable harness under the floor's insulation panel.





- Reinstall the panel, ensure that all clips engage.

Note! There are eleven clips on the reverse of the panel that must engage in the body. Take care when aligning so that the clips do not break. Broken clips must be replaced with new ones.

- Tighten the panel using existing screws.





- The image shows the location of the clips on the rear of the panel.





- Remove the two parts of the cut-off safety clip.
- Take a new safety clip (D) from the kit, depress it and install it on the B pillar panel.
- Reinstall the panel and weatherstrip.






Reinstall:
- the rear sill trim panel, the two guides must align with the corresponding cut-outs in the side panel
- fold back the carpet
- the front sill trim panel
- backrest. Torque tighten the screw to 15 Nm (11 lbf.ft.)
- the armrest
- the seat cushion.

Finishing work

Applies to all models




- Reinstall the connectors to the rear section of the glove box. Note the color marking on the cable for the right-hand connector.






Reinstall:
- the lower vent.
- the sound proofing.
- the rear section of the glovebox by guiding it in diagonally inside the center console and then straight forward. The rear section must be positioned on the outside of the remaining inner section.
Remove the tape.
- the clip for the vent on the glovebox
- the panel on the dashboard end face
- the panel inside the center console.

Note! Check that the cable for the control panel is not trapped.

- the sill trim panel.






Carry out a function test as follows:
- Turn the ignition key to position I.
- Turn on the radio.
- Check that the control panel for Bluetooth lights up.
- Press the button (1) in the middle of the control panel. The radio should mute and a voice should be heard.
- Press the button (2). The voice should stop and the radio sound should return.
