Part 1

Handsfree, Bluetooth



























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.






Handsfree, Bluetooth

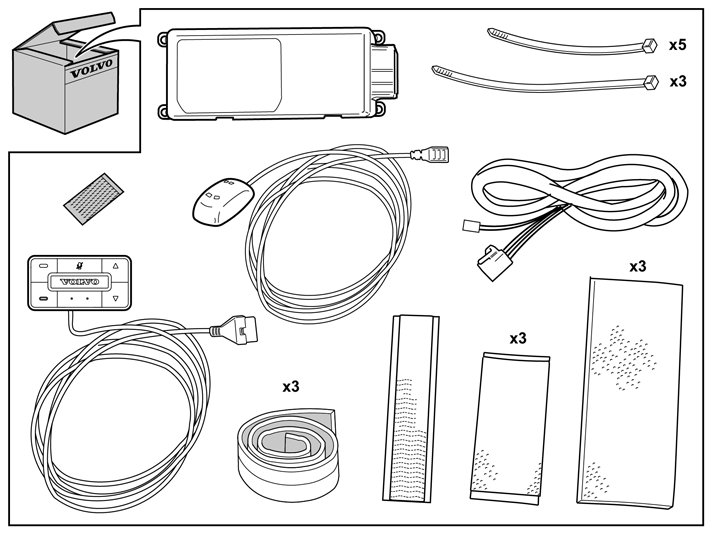

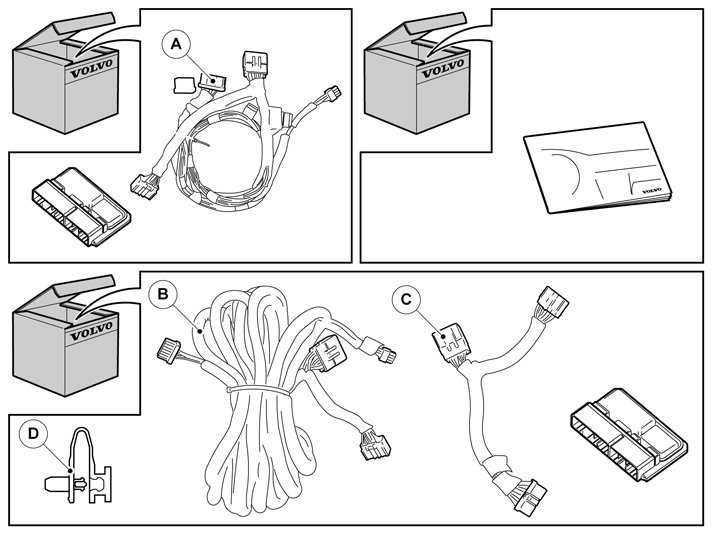

Note! Wiring A is for cars with an internal amplifier, which is located in the media player.Wiring B and C is for cars with an external amplifier, which is located on the right-hand front side of the rear seat.Cars with Performance Sound have internal amplifier.Cars with the High Performance and Premium Sound audio systems have external amplifier.There may be components in the accessories kit that are not used for this installation.

Note! These installation instructions apply to left-hand drive vehicles. When installing in a right-hand drive vehicle, the procedure is carried out on the opposite side and/or mirrored. Where the operation differs, right-hand versions are also displayed with text and images.

Note! When installing Velcro fasteners/tape the underlying surface must be kept at a temperature of at least +20° C (68°F).Place the manual for this accessory in a suitable place in the vehicle.

Preparations





- Set the ignition key to position 0.





- Open the glovebox.
- Pry off the panel in front of the center console. It is secured with two clips on each short side.
- Pull the panel away downwards.

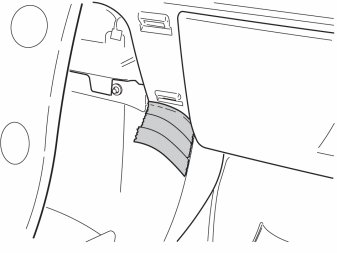

- Apply tape to the center console to protect it during removal and installation of the glove compartment.





- Remove the panel.

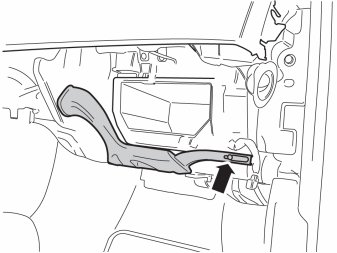

- Detach the clip holding the vent from the glove compartment.





- Remove the rubber mat from the glovebox.
- Remove the five screws in the opening.
- Pull the glovebox straight back to release the two hidden clips at the upper edge.
- Remove the outer section of the glovebox.





- Unplug the connectors on the top.





- Remove the screws for the vent.
- Pull off the vent to the right and place to one side.

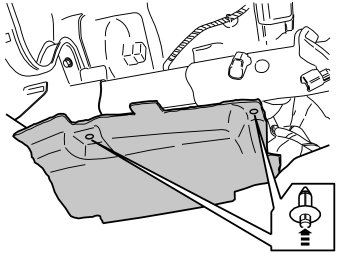

- Remove the clips at the rear edge of the soundproofing panel and remove it.





- Detach the surround from around the display and the media player. Press in the catch in one of the surround's upper corners using a small screwdriver. Carefully pry off the surround on the same side using a weatherstrip tool.

Note! Do not damage the panel and dashboard.

- Do the same on the other side.

Hint: If the panel is difficult to remove, press the panel on both sides again and repeat the procedure starting at the other side.

- Fold the surround backwards. Remove by pulling upwards.

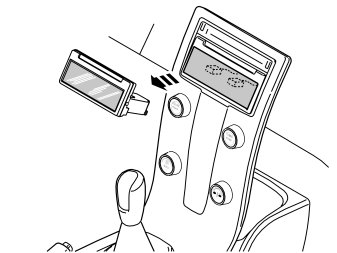

- Remove the display with the infotainment control module (ICM). It is secured by two hidden clips.

Hint: Grip the control module with both hands and pull the control module straight out of the centre console.

- Unplug the connectors.





- Detach the panel by pulling it carefully sideways.





- Fold up the tunnel console's armrest and remove the cover.

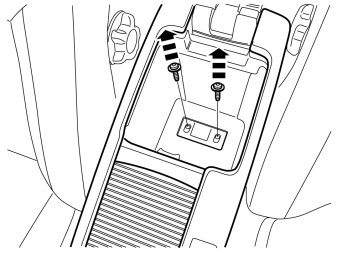

- Remove the screws.

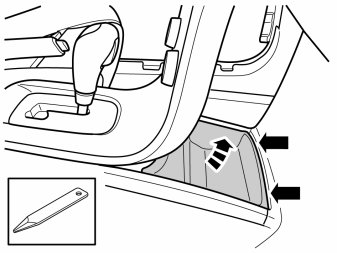

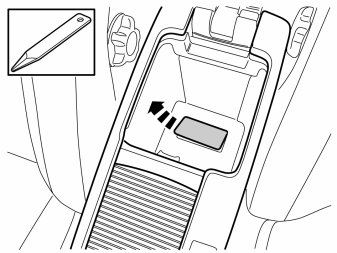

- Remove the front storage compartment by prying it off at the front edge using a weatherstrip tool and lifting it out.





- Remove the two screws along the front edge of the tunnel console.


Illustration A

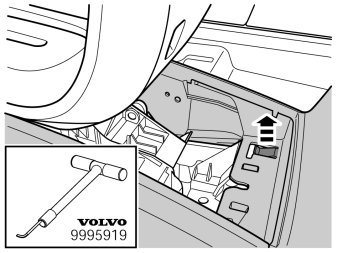

- Carefully lift the catches at the leading edge of the tunnel console. Use special tool 9995919.

Illustration B

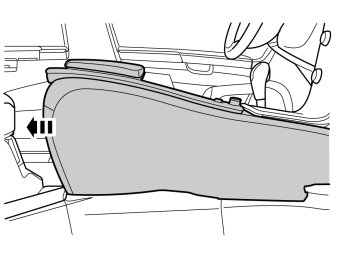

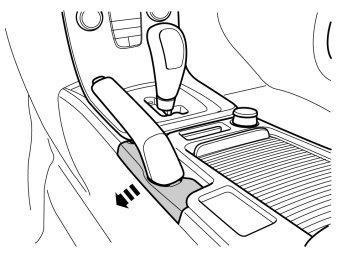

- At the same time pull the console backwards approximately 20 mm.

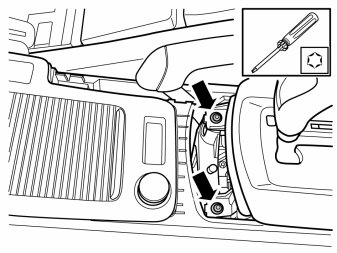

- Remove the screws.






Applies to cars with manual gearbox

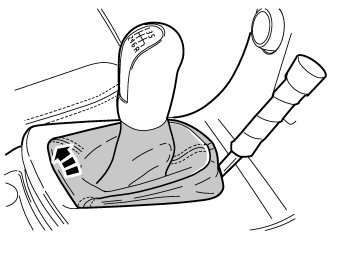

- Remove the gear selector lever boot from the center console. First pry it off at the front edge using a weatherstrip tool and then unhook it at the rear edge.

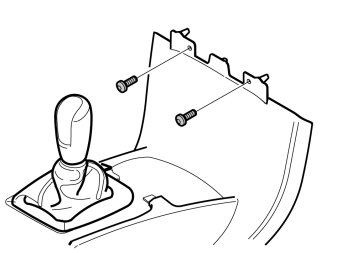

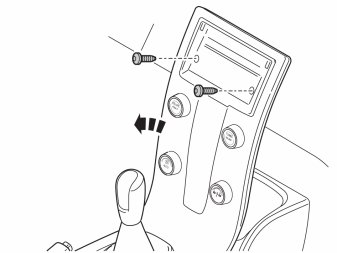

- Remove the two screws.
- Remove the connector on the reverse of the center console.
- Remove the center console.

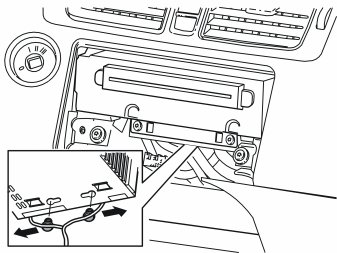

- Remove the two clips securing the cables to the media player by first pressing them to the sides and then pulling them away downwards.

Note! Be careful with the optic cables so that they are not bent or stretched.

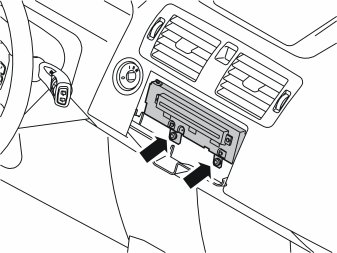

- Remove the two screws from the bottom of the media player.
- Pull out the media player. Disconnect the connector on the reverse side.

Note! Note how the wiring is packed on the reverse. The fiber optic cables are easily damaged and must not be bent to a radius less than 25 mm (1").






Applies to cars with internal amplifier
- Remove cable harness A from the kit.

Applies to cars with external amplifier
- Remove cable harness B from the kit.

Applies to all models

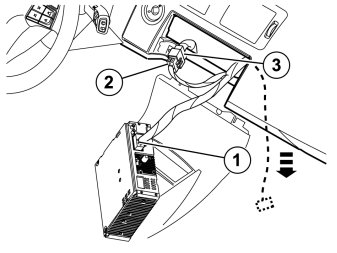

- Connect the gray connector (2) in the new cable harness to the gray connector (3) which was detached from the media player.
- Take a 700 mm piece of foam tape and cut into three pieces of the same length. Tape one piece around connectors (2) and (3). Position these to the left, in the opening so that they are not in the way when installing the media player.
- Connect the gray connector (1) in the new cable harness to the corresponding socket in the media player.
- Route the cable harness with the connectors down on the right-hand side in the center console.
- Plug the remaining connectors which where detached into the media player.
- Reinstall the media player and secure it.

Installing the control panel

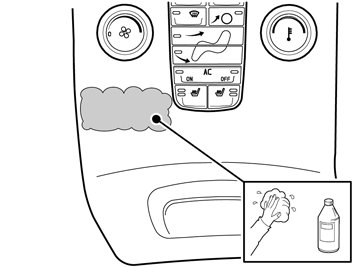

- Clean the area on the centre console as illustrated, which corresponds to the size of the double-sided adhesive tape. Use a solution of 25% isopropanol and 75% water, as well as a lint free cloth. Wipe dry carefully, do not rub.
- Allow to dry

Note! In cases where the area is heavily soiled or treated with cockpit shine, first clean using a washing up detergent.


Illustrations A and B




- Place the control panel cable in the groove as illustrated.

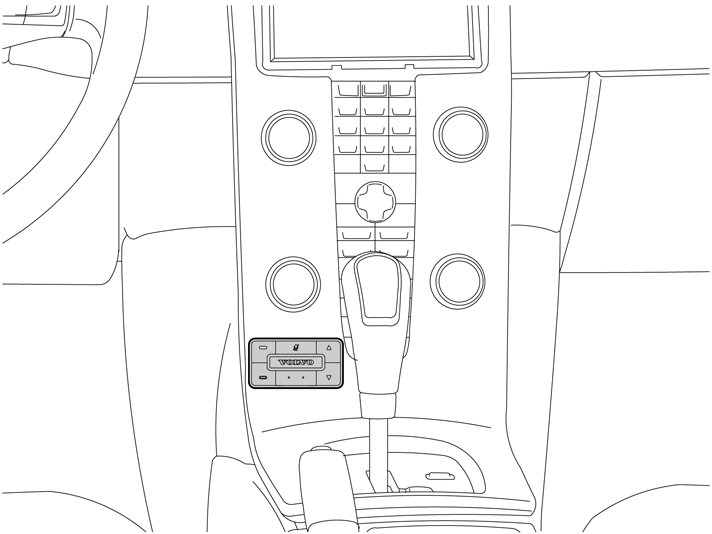

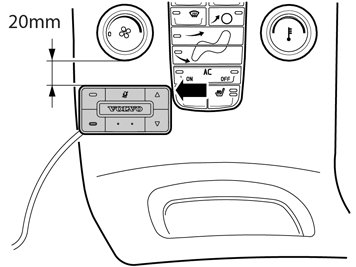

- Remove the protective film from the tape and press the control panel edge to edge against the climate panel and according to the dimensions in the image.

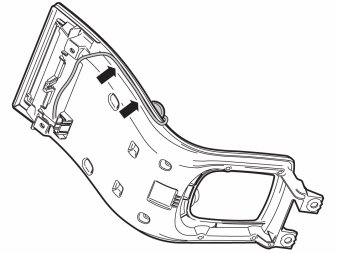

- Press the cable securely into the compartment that is in the joint between the front and rear side of the center console. Stop level with the lower edge of the display opening.
- Reinstall the center console, connect the green connector and install the screws.

Applies to cars with manual gearbox
- Install the gear selector boot in the center console starting at the rear edge.





- Pull the 2 cables down on the right-hand side of the center console.

Installing the microphone

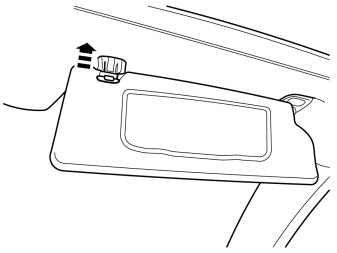

- Unhook the sun visor from the mounting.
Carry out on both sides.

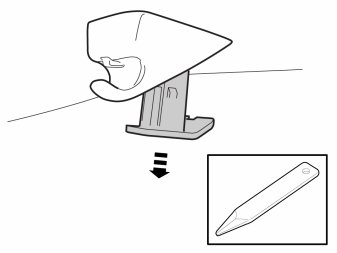

- Remove the lock plug and the mounting.
Carry out on both sides.





- Pull off the driver's weather strip at the A-post and dashboard.

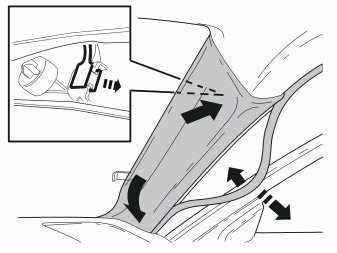

- Pull off the panel from the A-pillar. The panel is secured by three clips.
- Unhook the safety clip.
- Lift the panel upwards and inwards in the vehicle.
- Remove the panel.

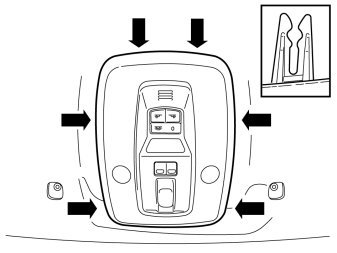

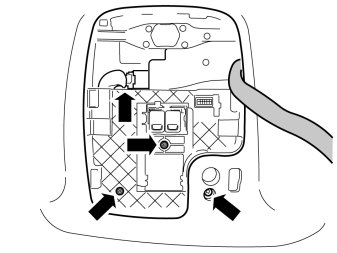

- Remove the interior lighting by grasping the front edge and pulling downwards. It is held in place with six catches.

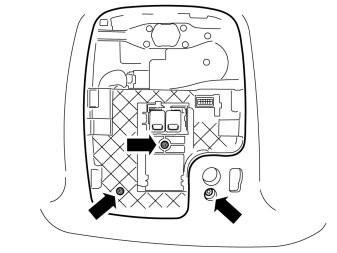

- Remove the three screws.





- Take two 700 mm pieces of foam tape from the kit.
- Cut one piece of foam tape in the middle.

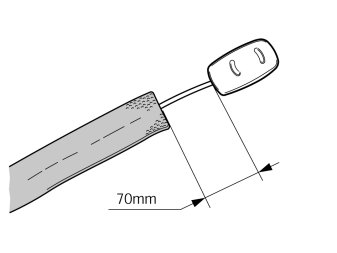

- Tape one long and one short piece of foam tape on the microphone cable starting 70 mm from the microphone.





- Pull down the headlining with the interior lighting frame slightly.

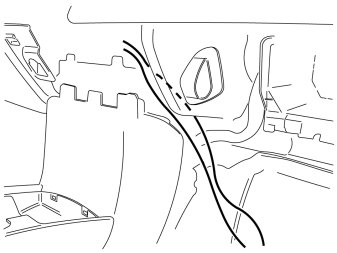

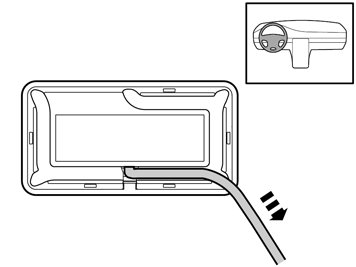

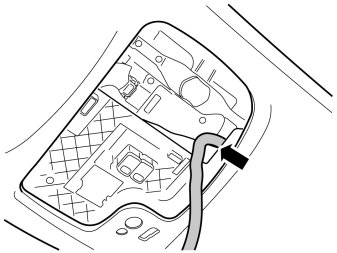

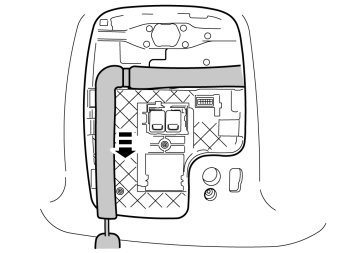

- Route the microphone cable along the top of the existing cable harness as illustrated.

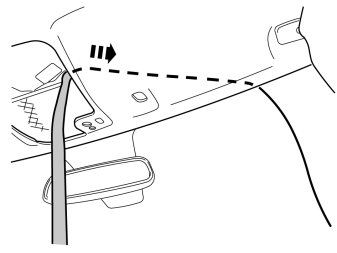

- Route the microphone cable to the front edge of the headlining as illustrated.

Note! Position the cable so that it is not pinched when the sun visor mounting is refitted.





- Make a mark on the foam tape affixed to the cable 230 mm from the microphone.
- Use a cable tie to fasten the cable at the mark at the existing connector.
- Install the three trim screws.





- Hold the microphone cable straight forward and refit the interior lighting.

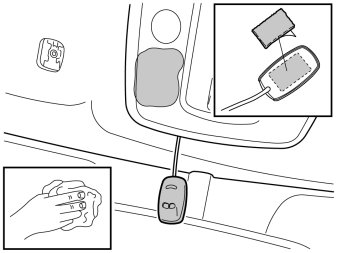

- Clean the microphone and ceiling panel as illustrated, using isopropanol.
- Remove the backing tape from one side of the Velcro strip and press it onto the microphone.
