Antitheft - 'Service Alarm Message'/DTC's Set
TIE - Technical JournalTitle Alarm System Service Required MY 2008-2009
Ref No US14767.7.0 en-GB
Issuer -
Partner 3US 7510 Volvo Cars North America
Func Group 3662 Func Desc burglar alarm equipment
Status Released
Status Date 2010-06-30
Issuer Date 2010-06-25
Reference
Attachment

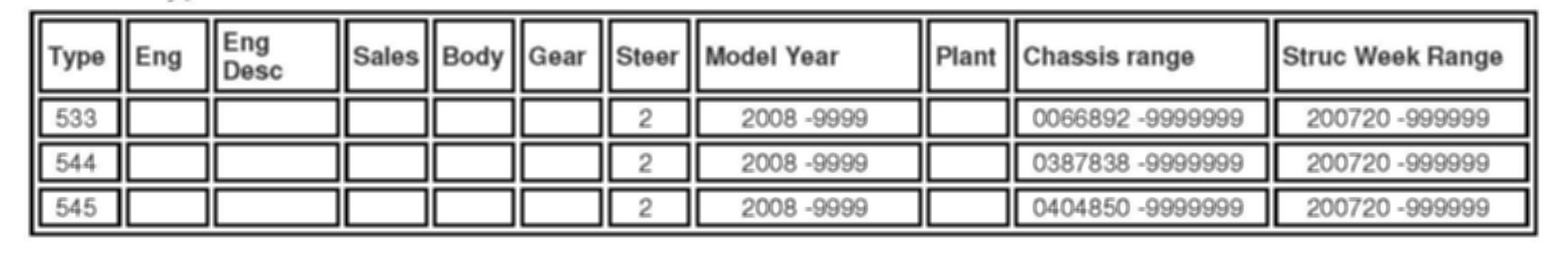

Vehicle Type
CSC
DTC
Text

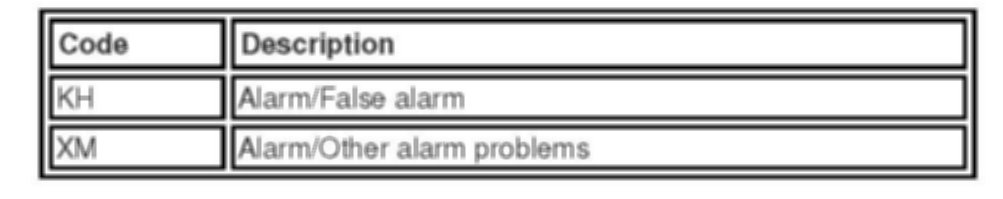

CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
DESCRIPTION: Customers may report a DIM (Driver information module) message "alarm system service required" in combination with possible false alarms and central locking problems. This could be caused by water intrusion into the siren connector.
PRODUCT MODIFICATION: The siren module has been slightly moved in the siren console, to stop water ingress to the connector. A new connector, P/N 30658218, on the harness has been introduced during Q1 2009, as a reinforced containment.
NOTE:
From structure week 2010w24 there is a new siren and siren bracket introduced into production.
SERVICE: If you receive a vehicle with "alarm system service required" and any of the DTC's above. Fault trace according to Vida - Check SCM (Siren Control Module) communication. Read out the part number for SCM according to VIDA at CEM DD1B fault tracing. If you have no communication or the number in VIDA is shown as "0000000000[ascii][ascii][ascii]" Replace the siren with the appropriate P/N in VIDA along with the connector and it's terminals.
Connector P/N 30658218 Qty 1
Terminals P/N 30656735 Qty 3
VSTG OPERATION NUMBER:
36604-2 Siren/horn/level sensor alarm (SCM) replacement See VSTG
- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change
