Signal Specification, Keyless Vehicle Module (KVM)

Signal specification, keyless vehicle module (KVM)

General
All values given below are between the terminals stated in column 1 and terminal #B4 (power ground). This applies unless otherwise indicated in brackets.

Note! It is important to connect the breakout box and check the ground terminals before taking readings.

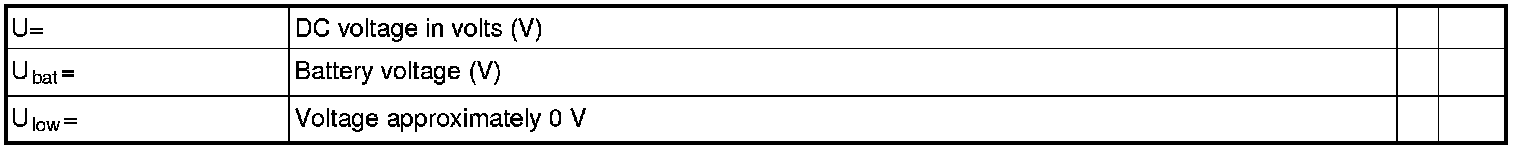

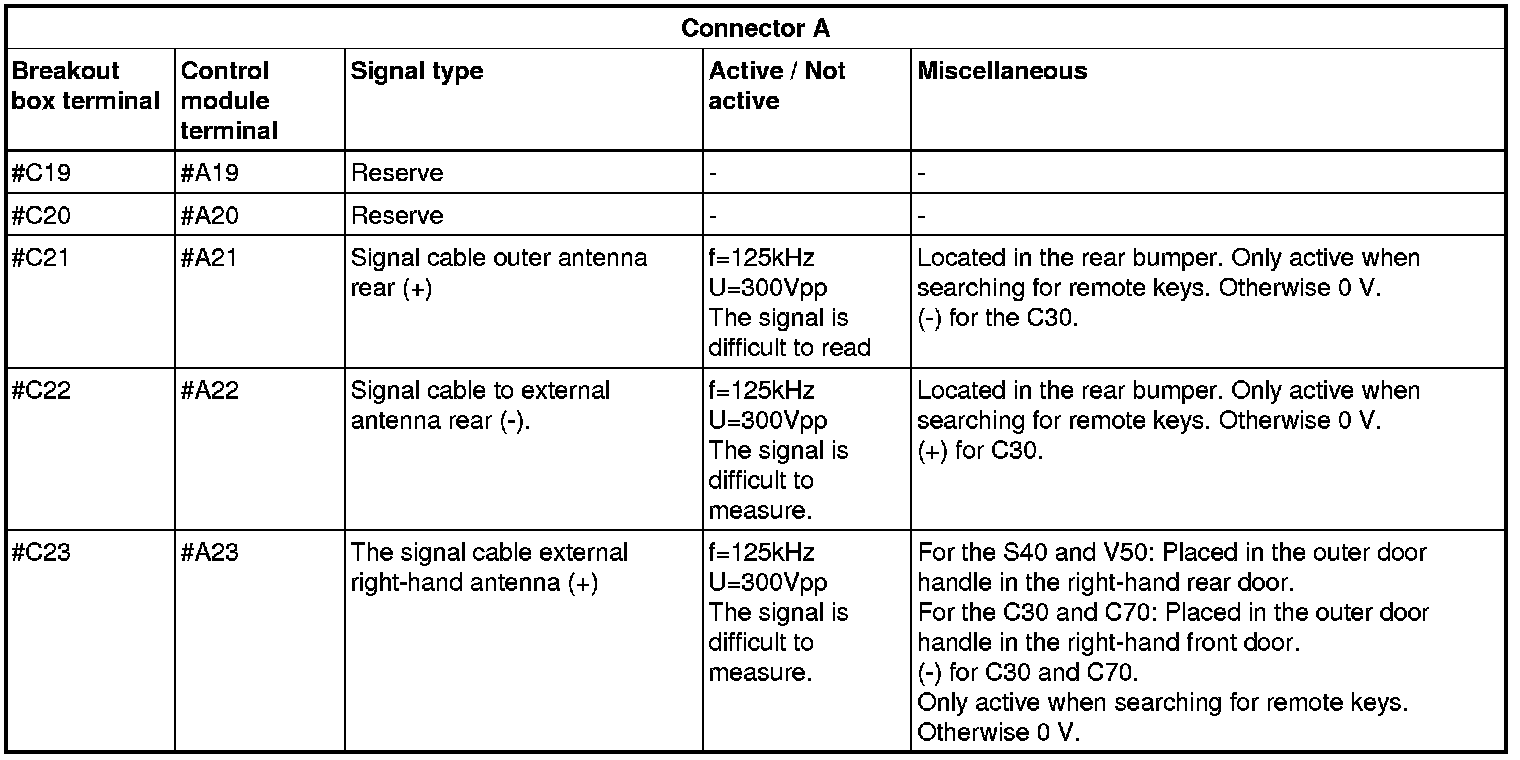

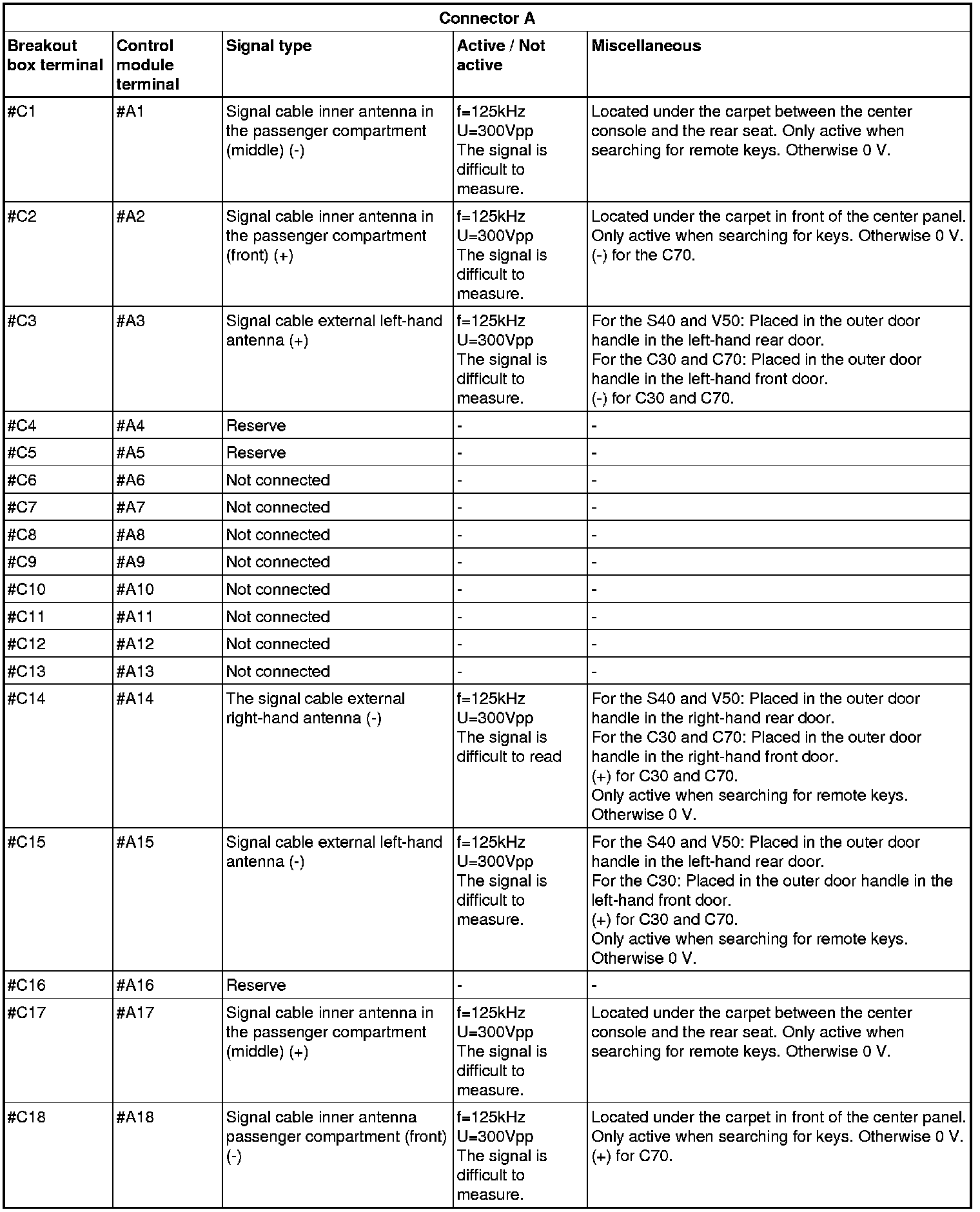

Connector A

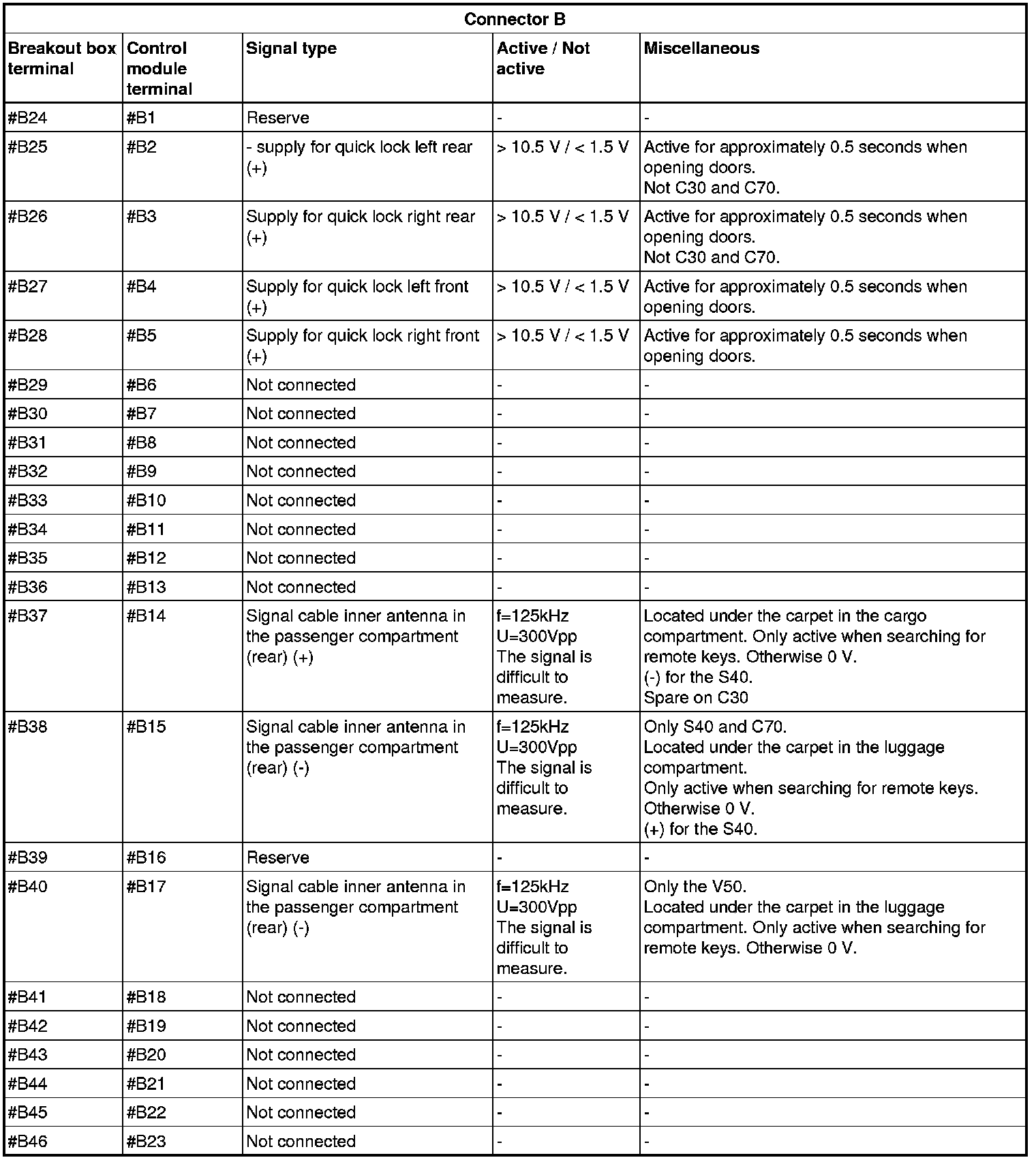

Connector B

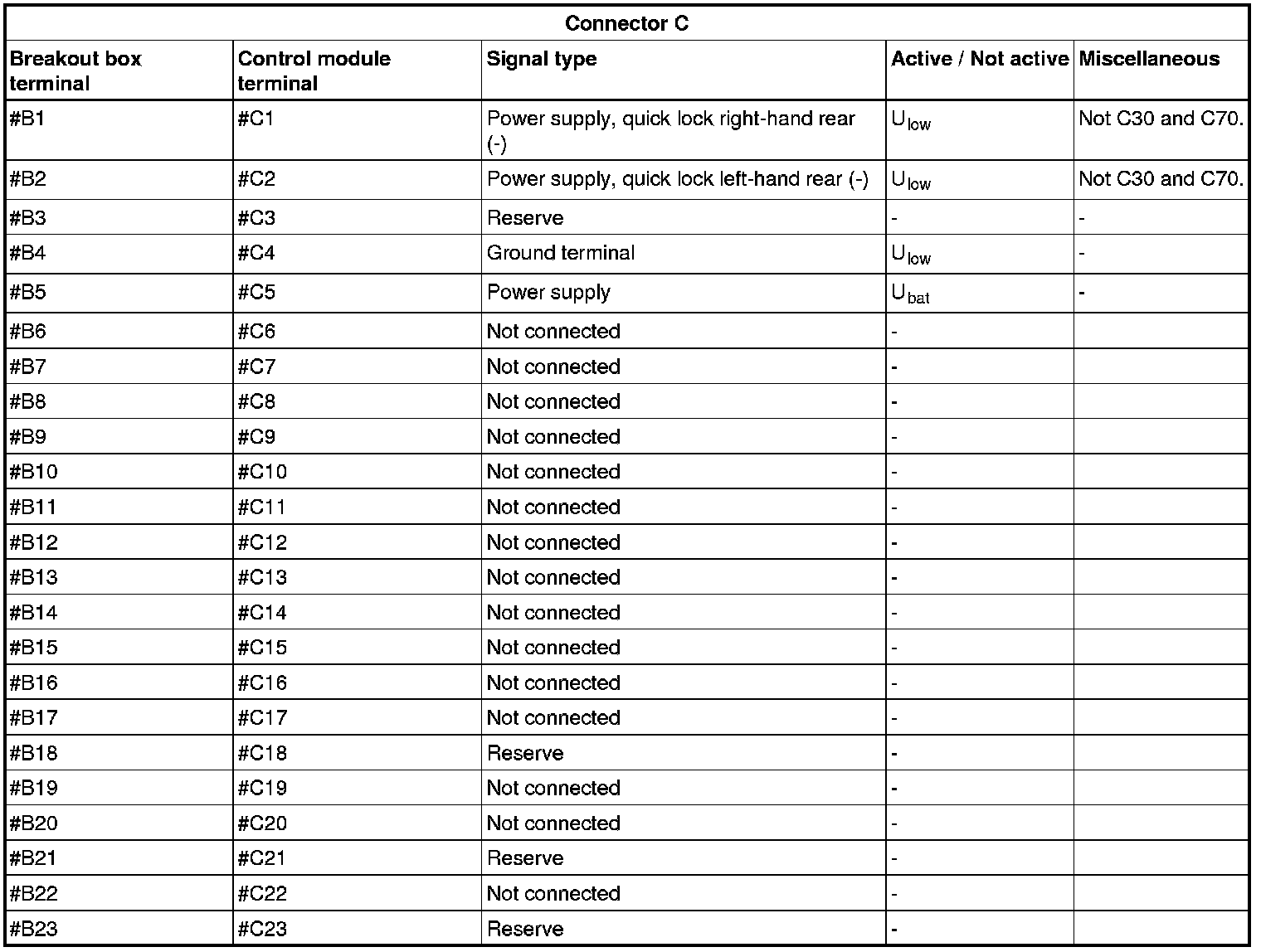

Connector C

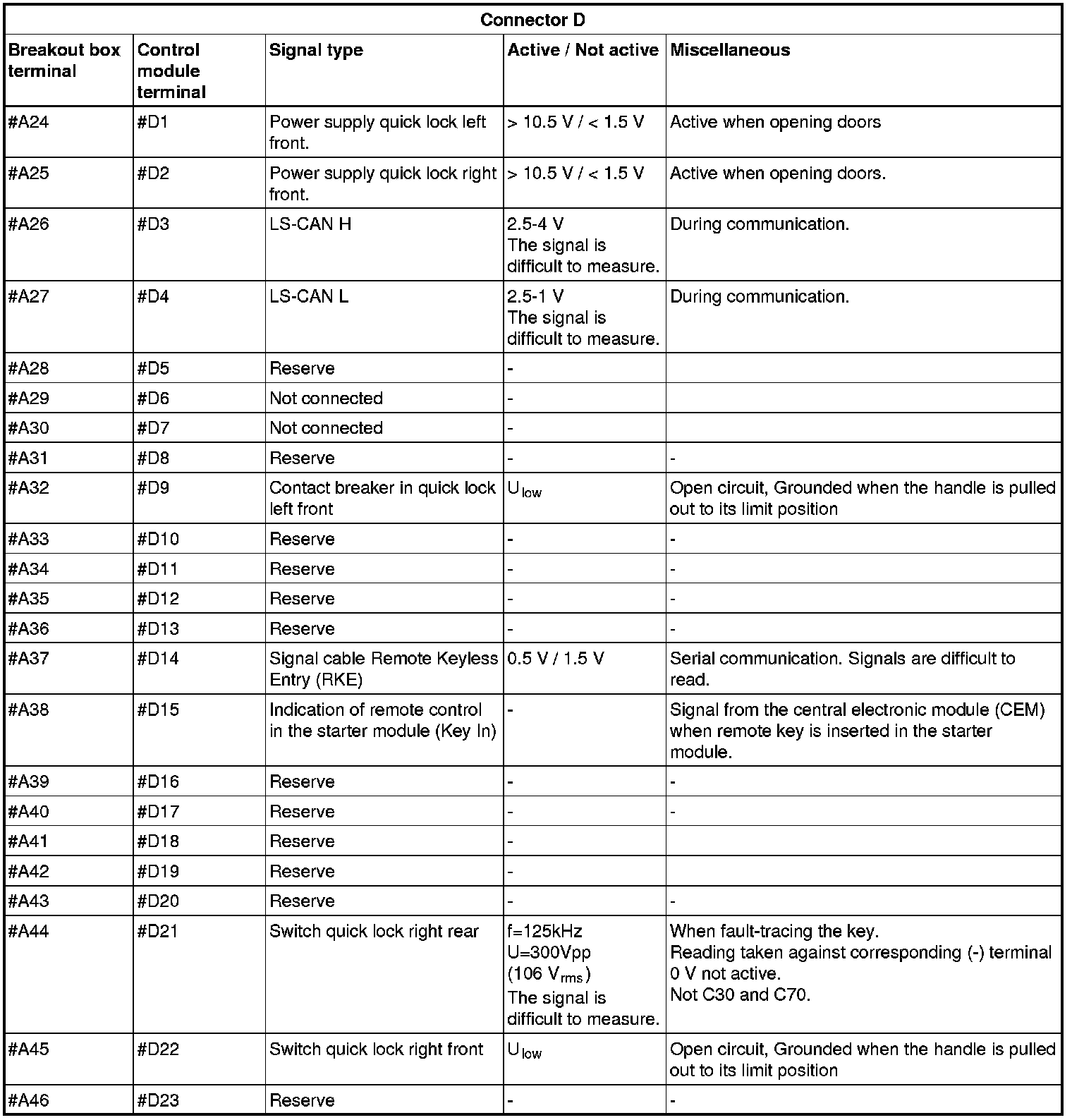

Connector D

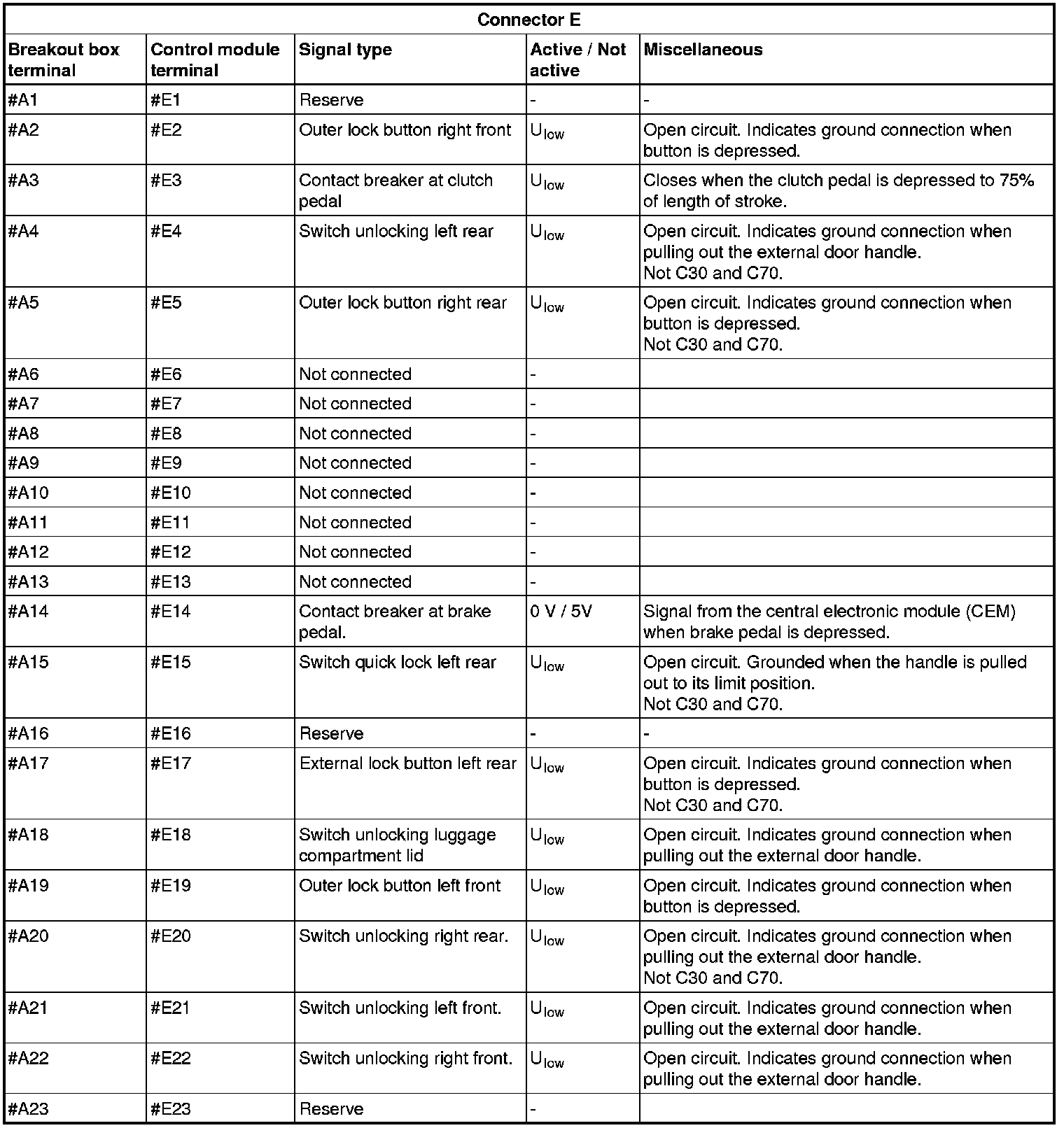

Connector E
