Antenna Amplifier: Service and Repair

Operation number: 39580-2

Antenna amplifier, radio

Removal

Note! Removal steps in this procedure may contain installation details.





Remove the B-pillar trim panel Refer to: B-pillar trim panel B-Pillar Trim Panel

Remove the C-pillar trim panel Refer to: C-pillar trim panel C-Pillar Trim Panel




Torque: M6, 10 Nm

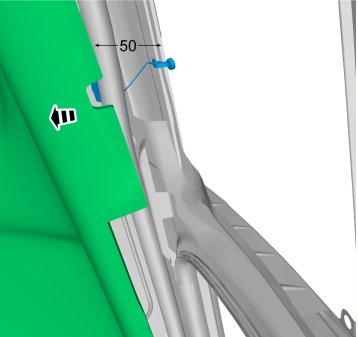

Caution! Take extra care not to crease the headliner.

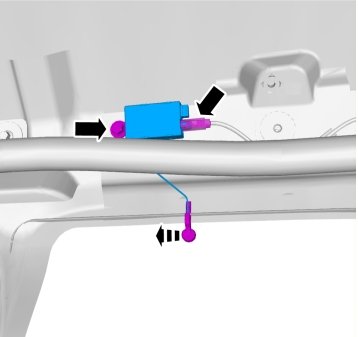

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.
