Activated Too Long

Activated too long

Checking the control

Hint: The diagnostic trouble code (DTC) is stored when a button or switch has been depressed for a long time. No further corrective action is required if the diagnostic trouble code (DTC) is intermittent and does not recur.

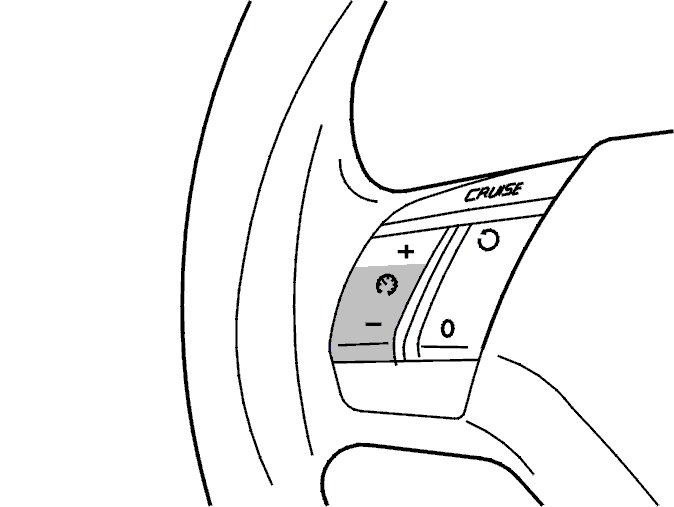

Check that the button or switch does not stick in the activated position.

Hint: Read off the relevant button or switch and check the function.

Remedy as necessary.

Other information:
- Keypad, steering wheel Service and Repair









Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reconnect the connectors, components, etc.
- Ignition on
- Read off the relevant button or switch.
Check that the function for the relevant button or switch is correct.





Is the function correct?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFIED - FAULT FOUND

VERIFICATION FAILED - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

FAULT-TRACING FAILED - No Fault Found

Attempt New Test - Checking the control

-------------------------------------------------
