Diagnostic Trouble Code (DTC) Information
Diagnostic trouble code (DTC) information SRS-00D9
Condition

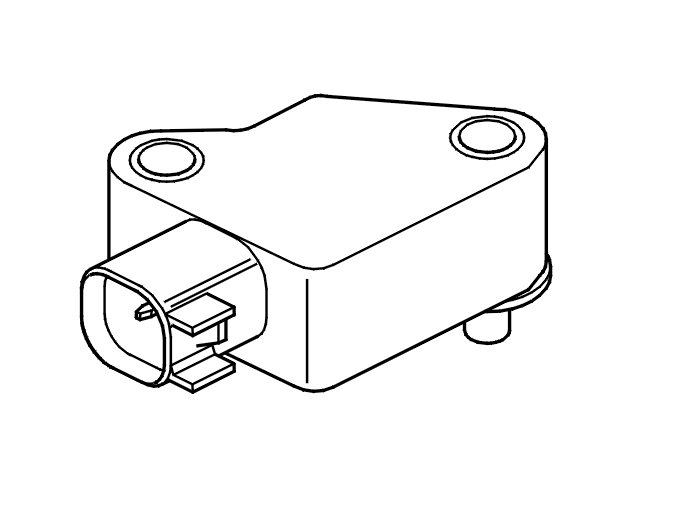

The supplemental restraint system module (SRS) checks the signal from the front left front impact sensor.
The diagnostic trouble code (DTC) is stored if the control module registers a configuration fault in the signal cable for longer than 2.5 seconds.
The diagnostic trouble code (DTC) can only be diagnosed when the ignition is switched on (12 V). In other words, the diagnostic trouble code (DTC) can only be diagnosed when the ignition is switched from position 0 to positions I, II or III.
Substitute value
- None.
Possible source
- If the supplemental restraint system module (SRS) identifies that a front left front impact sensor is installed, despite the control module being programmed that a front left front impact sensor is not installed.
Fault symptom[s]
- SRS indicator lamp lit
- SRS warning message displayed.
