Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information SRS-002F

Condition

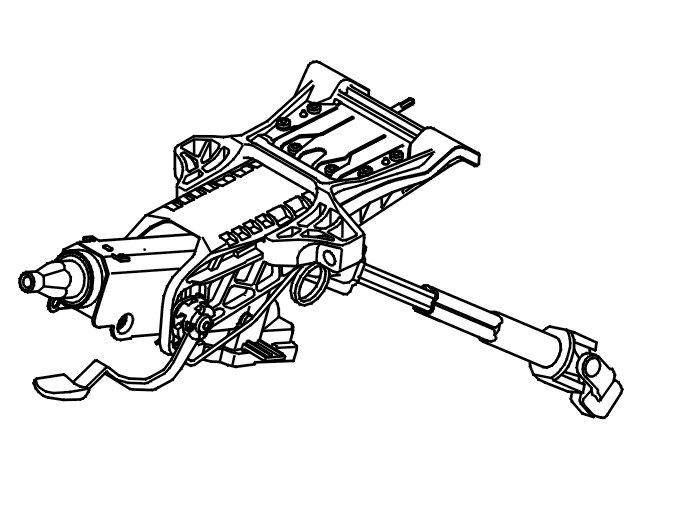

The supplemental restraint system module (SRS) checks the signal from the adaptive steering column.
The diagnostic trouble code (DTC) is stored if the control module registers that the voltage in the ignition cable is too high for longer than 2.5 seconds.
The diagnostic trouble code (DTC) can be diagnosed in ignition positions I, II or III.

Substitute value
- None.

Possible source
- Short-circuit to power supply in the SRS ignition cable or in the connectors between the supplemental restraint system module (SRS) and the adaptive steering column.

Fault symptom[s]
- SRS indicator lamp lit
- SRS warning message displayed.
