Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information PDM-0012

Condition

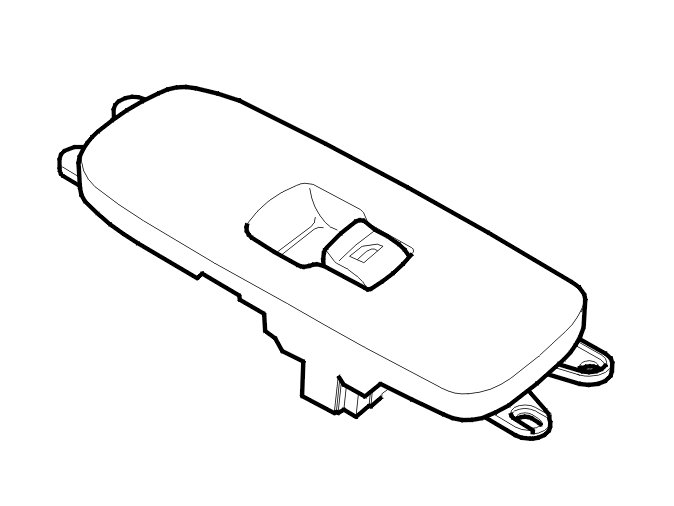

The diagnostic trouble code (DTC) is stored if the control module registers that the power window mechanism button has been pressed for more than 60 seconds.

Substitute value
- None.

Possible source
- The button has jammed in the pressed in position
- Damaged button for the power window mechanism.

Fault symptom[s]
- Passenger side power window mechanism does not operate.
