Signal Too Low
Signal too low
Function test
- Ignition on.
Check the left-hand antenna circuit by clicking on the VCT2000 symbol.
Was the function OK?
Yes - Fault-tracing information
No - Checking the wiring
-------------------------------------------------
Fault-tracing information
The keyless vehicle module (KVM) has previously registered a fault but the fault no longer exists. The diagnostic trouble code (DTC) was probably caused by an intermittent fault. If the fault persists, fault-tracing according to this diagnostic trouble code (DTC) must be carried out despite no fault symptoms being found. The fault is evaluated depending on how it occurs.
You can choose to view the information again or exit the fault-tracing.
Do you want to view the information again?
Yes - Function test
No - No Fault Found
-------------------------------------------------
Checking the wiring
- Ignition off
- Disconnect the battery negative lead.
Check the connections, antenna and cables for the rear antenna. Check for a short-circuit to ground or open-circuit.
To check an antenna, measure the resistance between both the antenna terminals. A normal value is between 10-50ohms depending on the length of the wiring to the antenna if the reading occurs at keyless vehicle module (KVM). The value must not be 0 ohms or infinite. Remedy as necessary.
Other information
- Connecting the breakout box Connecting the Breakout Box, Keyless Vehicle Module (KVM)
- Checking wiring and terminals Checking Wiring and Terminals
Was a fault detected?
Yes - Verification
No - Replacing the control module
-------------------------------------------------
Replacing the control module
The fault is probably an internal fault in the keyless vehicle module (KVM) as no other faults were detected. The module should be replaced in this case.
Other information
- Keyless vehicle module (KVM) Service and Repair
Continue - Verification
-------------------------------------------------
Verification
Verification
Hint: After carrying out the repair, check that the fault has been remedied.
- Ignition off
- Reinstall the connectors, components etc.

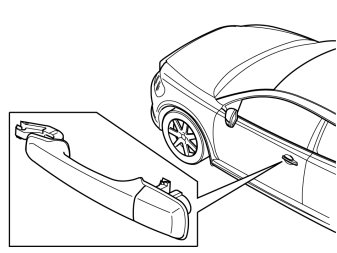

Check the function of the outer left-hand antenna circuit by clicking on the VCT2000 symbol. The keyless vehicle module (KVM) checks the antennas and wiring.
The result should be OK.
Is the check OK?
Yes - VERIFIED
No - VERIFICATION FAILED
------------------------
VERIFIED - FAULT FOUND
VERIFICATION FAILED - Fault-tracing information
-------------------------------------------------
Fault-tracing information
Attempt New Test - Function test
-------------------------------------------------
