Signal Missing

Signal missing

Checking the component
The infotainment control module (ICM) has registered that there is no communication with the audio module (AUD).
If the fault is intermittent, it has been registered previously but is no longer present. Intermittent faults may occur at start up of the audio module (AUD) or may be a different type of fault that occurs on different occasions. The fault is evaluated depending on how it occurs.
Replace the audio module (AUD) in the event of a permanent fault.
Remedy as necessary.

Other information

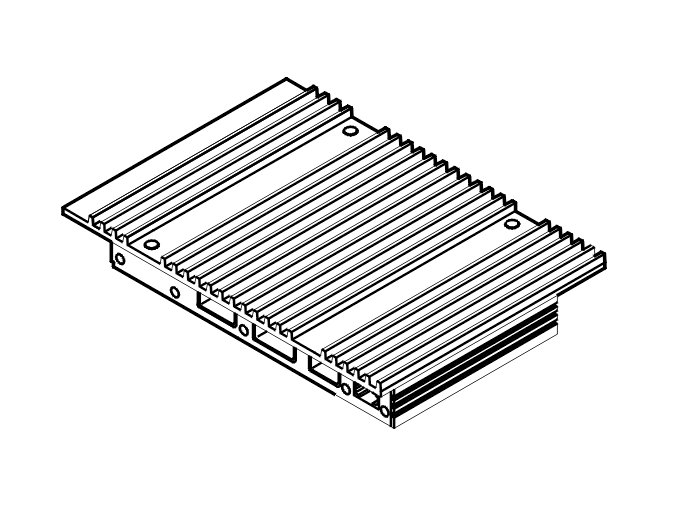

- Audio Module Audio Module





Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reinstall the connectors, components etc.
- Ignition on for at least 12 seconds.
Read off the control module ID from the audio module (AUD) by clicking on the VCT2000 symbol.





Can the control module ID be read off?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFIED - FAULT FOUND

VERIFICATION FAILED - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking the component

-------------------------------------------------
