Signal Too Low

Signal too low

Fault-tracing information
Check the power supply and ground terminal to the electrical power steering module (EPS).

Note! For vehicles manufactured between w38 (2003) and w48 (2004), diagnostic trouble code (DTC) EPS-0071 is sometimes generated even though there is no fault in the power supply to the electrical power steering module (EPS). If there are no fault symptoms (see diagnostic trouble code (DTC) information) for this diagnostic trouble code (DTC), it is to be cleared immediately.

Remedy as necessary.

Other information
- Checking the supply voltage/ground terminal Checking Voltage/Ground Terminal, Electrical Power Steering Module (EPS)

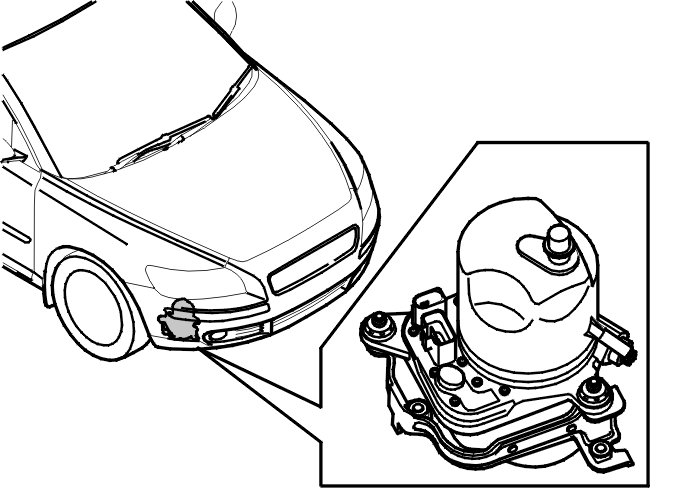

Location Of Components:

Continue - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
In case of this defect, troubleshooting is not followed by verification.
The information can be displayed again or the fault-tracing for this fault can be interrupted.

Do you want to view the information again?

Yes - Attempt New Test

No - FAULT FOUND

------------------------

Attempt New Test - Fault-tracing information

FAULT FOUND - DONE

-------------------------------------------------
