Signal Missing
Signal missing
Checking the component and wiring
Hint: If the diagnostic trouble code (DTC) for the gear-shift position sensor is stored in the transmission control module (TCM), this diagnostic trouble code (DTC) must be remedied first.
- Check the connector for the transmission control module (TCM) control module. Check for contact resistance. Check for oxidation.
Check the signal cable between engine control module (ECM) terminal #B15 (#C15) and transmission control module (TCM) terminal #5. Check for an open-circuit. Check for a short-circuit to supply voltage. Check for a short-circuit to ground.
Remedy as necessary.
Other information
- Connecting the breakout box, B5254T7 Connecting the Breakout Box, Engine Control Module (ECM)
- Signal specification, B5254T7 Signal Specification
- Checking wiring and terminals Checking Wiring and Terminals
Continue - Verification
-------------------------------------------------
Verification
Verification
Hint: After carrying out the repair, check that the fault has been remedied.
- Ignition off
- Reinstall the connectors, components etc.

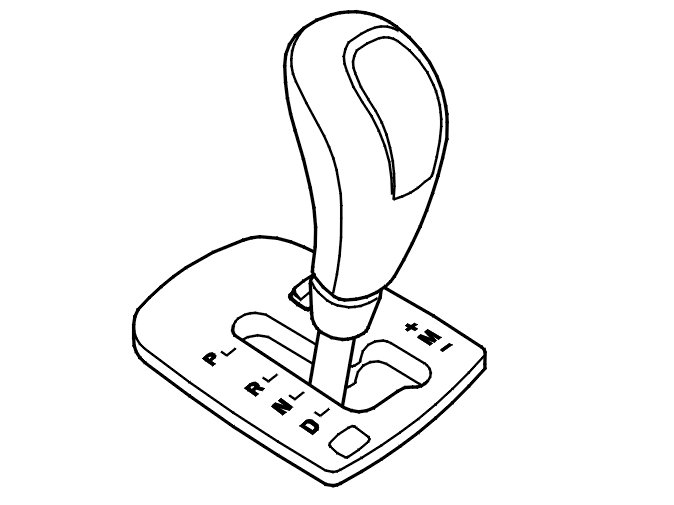

- Gear selector in position P or N
- Ignition on.
Read off the values for the gear selector position.
Directly connected signals and signals via CAN communication must correspond to each other and to the selected gear position when the gear selector is in P or N.
Are the values correct?
Yes - VERIFIED
No - VERIFICATION FAILED
------------------------
VERIFICATION FAILED - Fault-tracing information
VERIFIED - FAULT FOUND
-------------------------------------------------
Fault-tracing information
Information
Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.
Do you want to exit fault-tracing?
Yes - Exit fault-tracing
No - Attempt New Test
------------------------
Attempt New Test - Checking the component and wiring
-------------------------------------------------
