Signal Too High

Signal too high

Checking the component and wiring
Check the signal cable. Check for a short-circuit to supply voltage.
Take readings between:

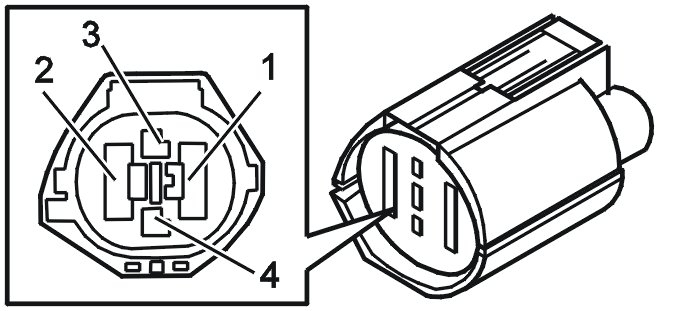

- Engine Control Module (ECM) #B8 (#C8) and electric cooling fan module #4.
Remedy as necessary.

Other information
- Connecting the breakout box, B5254T7 Connecting the Breakout Box, Engine Control Module (ECM)
- Signal specification, B5254T7 Signal Specification
- Checking wiring and terminals Checking Wiring and Terminals













Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reinstall the connectors, components etc.
- Ignition on.
Activate the engine cooling fan (FC).
Check that the engine cooling fan (FC) starts.





Does the engine cooling fan (FC) start?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFICATION FAILED - Fault-tracing information

VERIFIED - FAULT FOUND

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking the component and wiring

-------------------------------------------------
