Signal Too High / Signal Missing

Signal too high / Signal missing

Checking the component

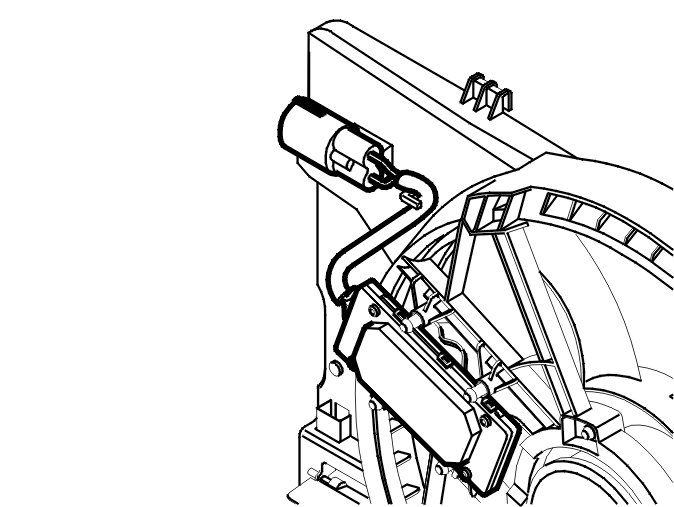

Check that the fan blade rotates easily and that nothing is obstructing it.
Remedy as necessary.





Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reinstall the connectors, components etc.
- Ignition on.
Activate the engine cooling fan (FC).
Check that the engine cooling fan (FC) starts.





Does the engine cooling fan (FC) start?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFICATION FAILED - Fault-tracing information

VERIFIED - FAULT FOUND

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking the component

-------------------------------------------------
