Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information ECM-540D

Condition

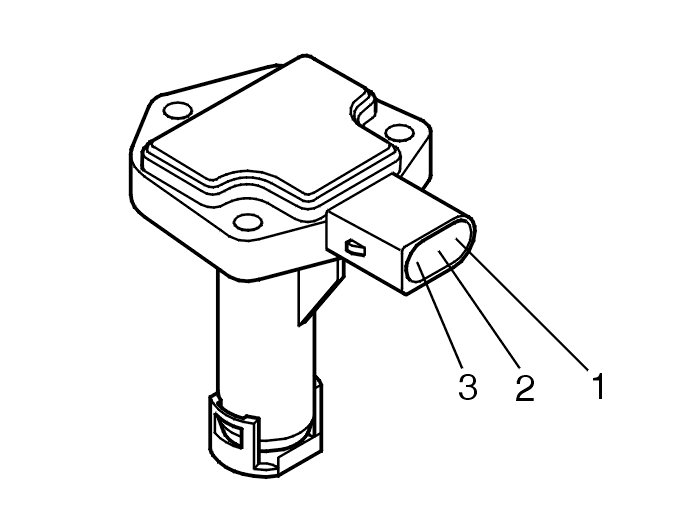

The engine control module (ECM) checks the signal from the oil level sensor. The diagnostic trouble code (DTC) is stored if the engine control module (ECM) detects that there is no signal from the oil level sensor.
The diagnostic trouble code (DTC) can be diagnosed when the engine is running.

Substitute value
- None.

Possible source
- The signal cable is short-circuited to ground.
- Damaged oil level sensor.

Fault symptom[s]
- None.
