Signal Missing

Signal missing

Checking components and wiring

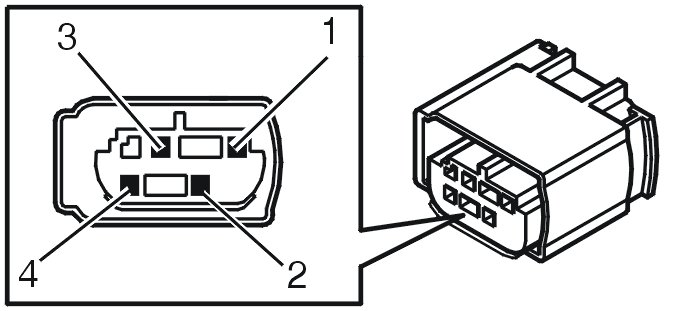

Check the leakage diagnostics unit's connector for contact resistance and oxidation.
Check the pump motor's resistance between the leakage diagnostic unit's connector #1 and #4 (against the leakage diagnostics pump).
Check the cable for an open-circuit.
Take readings between:
- Engine Control Module (ECM) #B23 (#C23) and leakage diagnostic unit #1.
Check the voltage cable between system relay #5 and the leakage diagnostics unit #4 for open circuit.
Remedy as necessary.

Other information
- Connecting the breakout box, B5254T7 Connecting the Breakout Box, Engine Control Module (ECM)
- Signal specification, B5254T7 Signal Specification
- Leak diagnostic pump, B5254T7, AW55-50/51SN, B5254T7, M66 Service and Repair
- Checking wiring and terminals Checking Wiring and Terminals









Continue - Troubleshooting information

-------------------------------------------------

Troubleshooting information




Information

Fault-tracing information
Fault-tracing is not followed by verification for this fault.

Hint: After the diagnostic trouble codes (DTCs) are erased, the function of the leak diagnostic unit can be checked by running a quick test of the fuel tank system in the vehicle communication socket. If there is a fault, the fault status will be "FAULT FOUND" on the leak diagnostic unit.

The information can be displayed again or fault-tracing this fault can be interrupted.

Do you want to view the information again?

Yes - Attempt New Test

No - FAULT FOUND

------------------------

Attempt New Test - Checking components and wiring

FAULT FOUND - DONE

-------------------------------------------------
