Open-Circuit

Open-circuit

Checking the component
If the fault is intermittent, it has been registered previously but is no longer present. Intermittent faults can occur for a number of different reasons. The fault is evaluated depending on how it occurs.
Check the connector. Check for contact resistance and oxidation.
Check the signal cable between control module terminal #B8 (#28) and door mirror terminal #8. Check for an open-circuit.
Replace the signal cable if a fault is found.
Try replacing the door mirror if no fault is found.
Remedy as necessary.

Other information:

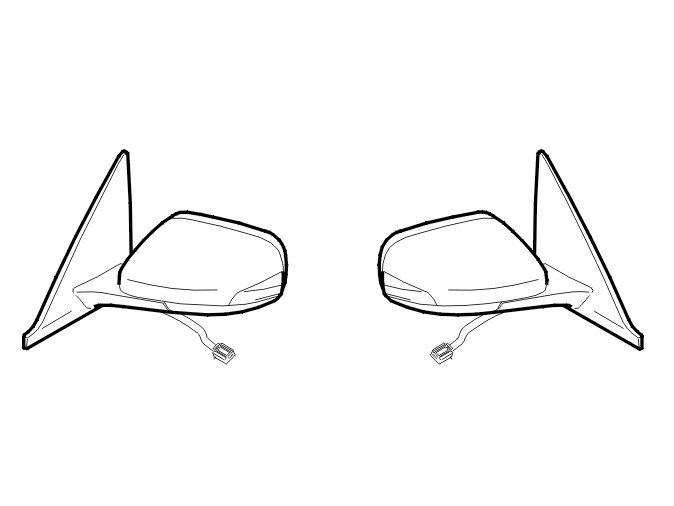

- Rear view mirror external Rear View Mirror External
- Signal specification Signal Specification, Driver's Door Module / Passenger Door Module (DDM/PDM)
- Checking wiring and terminals Checking Wiring and Terminals





Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reinstall the connectors, components etc.
- Ignition on.
Read off the end values for the door mirror potentiometers by clicking on the VCT2000 symbol.
Check that the limit values for the door mirrors are between 1 and 4 V.





Is the response within its permitted range?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFIED - FAULT FOUND

VERIFICATION FAILED - Fault-tracing information

-------------------------------------------------

Fault-tracing information

Attempt New Test - Checking the component

-------------------------------------------------
