Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information DDM/PDM-0010

Condition

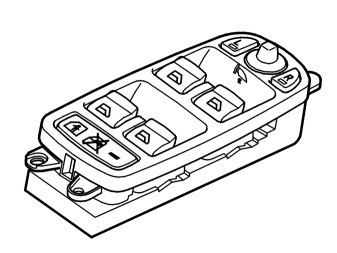

The diagnostic trouble code (DTC) is stored if the control module registers an open-circuit in the signal from the control panel for the power window mechanism.

Substitute value
- None.

Possible source
- The control panel for the power window mechanism is disconnected.

Fault symptom[s]
- The power window mechanism in the rear door does not operate
- The driver's side power window mechanism does not operate
- Passenger side power window mechanism does not operate.
