Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information DDM-0012

Condition

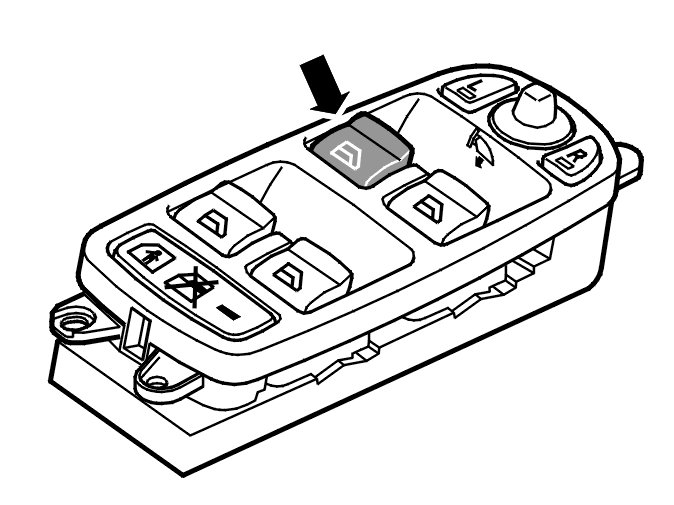

Note! The illustration shows the control panel for the driver door in a left-hand drive car. The control panel of a right-hand drive car is the mirror image.

The diagnostic trouble code (DTC) is stored if the control module registers that the power window mechanism button has been pressed for more than 60 seconds.

Substitute value
- None.

Possible source
- The button has jammed in the pressed in position
- Damaged button for the power window mechanism.

Fault symptom[s]
- The driver's side power window mechanism does not operate.
