Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information CEM-DD1A

Condition

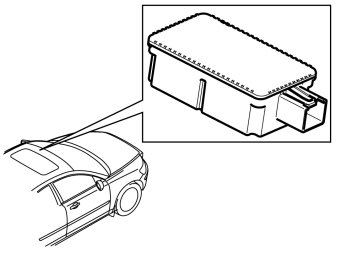

The central electronic module (CEM) checks the communication with the antenna unit (RRX). The diagnostic trouble code (DTC) is stored if communication is disabled, despite several attempts.

Substitute value
- None.

Possible source
- No power supply for the antenna unit (RRX)
- Open-circuit in the ground lead to the antenna unit (RRX)
- Open-circuit in the signal cable to the antenna unit (RRX).

Fault symptom[s]
- Cannot be controlled with the remote control.
