Faulty Signal

Faulty signal

Checking the wiring








- Ignition off

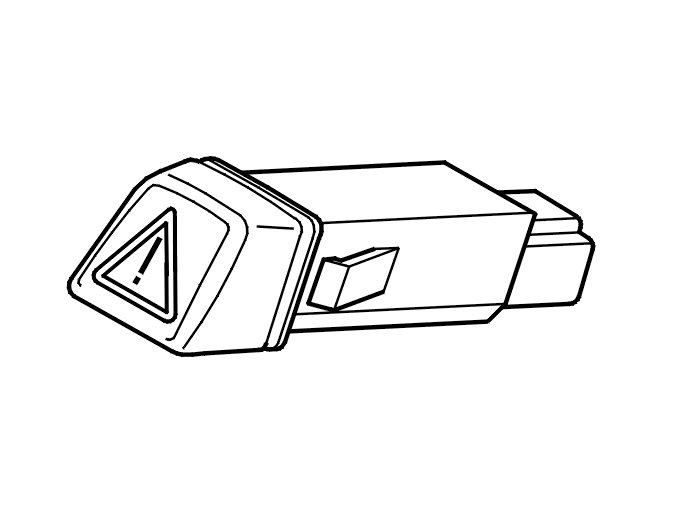

- Disconnect the switch hazard warning signal flashers connector.
Check signal cable for an open-circuit and short-circuit to supply voltage.
Take readings between:
- Central electronic module (CEM) terminal #B3 (#3) and hazard warning signal flashers switch connector terminal #1.
Remedy as necessary.

Other information
- Connecting the breakout box Connecting the Breakout Box, Central Electronic Module (CEM)
- Location of components Component Location, Central Electronic Module (CEM)
- Checking wiring and terminals Checking Wiring and Terminals













Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reinstall the connectors, components etc.
- Ignition on.
Activate reading off the status. Click the VCT2000 symbol.
Activate and deactivate the function.
Check that the function is OK.





Is the function OK?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFIED - FAULT FOUND

VERIFICATION FAILED - Fault-tracing information

-------------------------------------------------

Fault-tracing information

Attempt New Test - Checking the wiring

-------------------------------------------------
