Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information CEM-8C10

Condition





Note! On vehicles equipped with function for daytime running lights the relay supplies voltage to the front fog lights instead of the daytime running lights. Troubleshooting should be done in the same way.

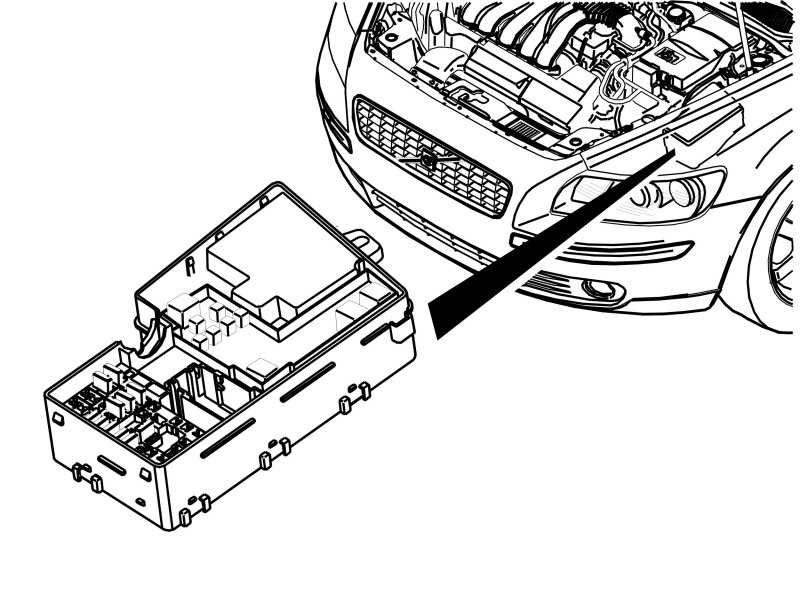

The central electronic module (CEM) powers the front fog lamp relay via an output. The diagnostic trouble code (DTC) is stored if the central electronic module (CEM) registers that the power consumption at the output is too low.
The relay for the front fog lamp must be activated for the diagnostic trouble code (DTC) to be stored.
The diagnostic trouble code (DTC) can be diagnosed at key positions I and II.

Substitute value
- None.

Possible source
- Short-circuit to battery voltage in the signal cable to the front fog lamp relay.

Fault symptom[s]
- The front fog lamps do not work.
