Incorrect Value

Incorrect value

Information about symptom fault-tracing
The diagnostic trouble codes (DTCs) are included in a larger fault-tracing for the symptom Starter motor not running.
Add the symptom and fault trace according to Checking the start system.
If this has already been carried out, continue fault tracing.

Do you want to continue with this procedure?

Yes - Programming control module

No - DONE

-------------------------------------------------

Programming control module
The problem is due to codes for the Immobilizer function in the Central Electronic Module (CEM) and the Keyless Vehicle Module (KVM) not matching.
The diagnostic trouble code can be generated if, e.g., an earlier download of software in any of the control modules has failed.
If any control module has been replaced, try downloading new software to the control module in question.

Other information
- For downloading of software:
Keyless vehicle module (KVM) Service and Repair
- For downloading of software:

Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reinstall the connectors, components etc.
- Start the engine.

Does the engine start?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFIED - FAULT FOUND

VERIFICATION FAILED - Replacing the control module

-------------------------------------------------

Replacing the control module

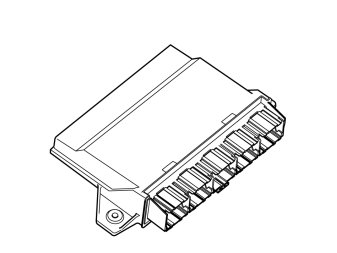

If the fault is not remedied by downloading new software to the Keyless Vehicle Module (KVM), there may be an internal fault in the control module.
In that case replace the Keyless Vehicle Module (KVM).

Other information
- Keyless vehicle module (KVM) Service and Repair





Select "Continue" after programming.

Continue - Verification

-------------------------------------------------

Verification
Verification
VERIFIED - FAULT FOUND

VERIFICATION FAILED - Fault-tracing information

-------------------------------------------------

Fault-tracing information

Attempt New Test - Programming control module

-------------------------------------------------
