Fault-Tracing Information

Fault-tracing

Checking the wiring and terminals
Check the cable. Check for an open-circuit. Check for a short-circuit to supply voltage.
Also check the intermediate connectors. Check for contact resistance and oxidation

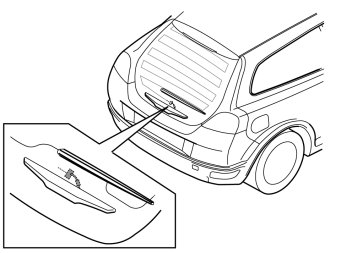

Unplug the connector for the tailgate and check the glass breakage circuit for open circuit.
The resistance must be approximately 0 ohms.
Remedy as necessary.

Other information:
- For information about terminal numbers and cable routing, see signal description and corresponding wiring diagram.
- Checking wiring and terminals Checking Wiring and Terminals





Continue - Verification

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reinstall the connectors, components etc.
- Switch on the ignition for at least 10 seconds.
Check that the relevant diagnostic trouble code (DTC) has switched status from permanent to intermittent fault. Press the VCT2000 symbol.





Has the status of the diagnostic trouble code (DTC) changed?

Yes - VERIFIED

No - VERIFICATION FAILED

------------------------

VERIFICATION FAILED - Fault-tracing information

VERIFIED - FAULT FOUND

-------------------------------------------------





Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking the wiring and terminals

-------------------------------------------------
