Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information BCM-0134

Condition





Note! This diagnostic trouble code (DTC) applies only to vehicles with dynamic stability and traction control (DSTC).

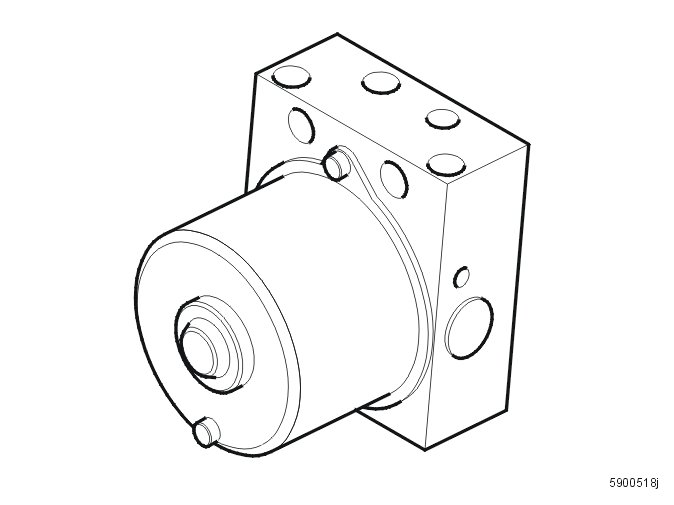

The brake pressure sensor is inside the hydraulic modulator and transmits signals to the brake control module (BCM) about the pressure in the brake system. The brake pressure sensor has an offset value (correction value) for the individual sensor offset. The diagnostic trouble code (DTC) is stored if the control module registers an incorrect offset value.

Substitute value
- Traction Control is blocked
- Stability Control is blocked
- Active yaw control is blocked.

Hint: Brake system, abbreviations Brake System, Abbreviations

Possible source
- The pressure sensor is not functioning
- Internal fault in the brake control module (BCM).

Fault symptom[s]
- The information lamp is lit
- Traction control does not function
- The stability control system does not function.
