Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information BCM-0113

Condition





Note! The diagnostic trouble code (DTC) applies only to cars with dynamic stability and traction control (DSTC).

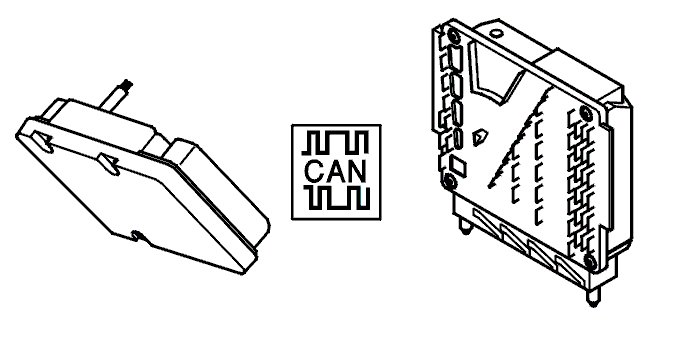

The brake control module (BCM) receives a signal containing information about the selected gear on the CAN network. If back-up (reverse) gear is selected, the stability function cannot be activated. In cars equipped a manual transmission, the signal comes from the central electronic module (CEM). In cars with an automatic transmission, the signal comes from the transmission control module (TCM).
The diagnostic trouble code (DTC) is stored if the brake control module (BCM) registers either that the signal is missing or receives a signal indicating that back-up gear is selected when the car is being driven forward.
The diagnostic trouble code (DTC) can be diagnosed when speed exceeds 40 km/h and the vehicle is driven straight ahead followed by a turn.

Substitute value
- None.

Possible source
- Open-circuit or short-circuit in the circuit for the back-up (reversing) lamp switch (manual transmission)
- The transmission control module (TCM) has detected a fault in the gear selector lever assembly.

Note! This diagnostic trouble code (DTC) is not due to an internal hardware fault in the Brake control module (BCM) and must not be remedied by replacing the control module.

Fault symptom[s]
- None.
