Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information AUD-001C

Condition

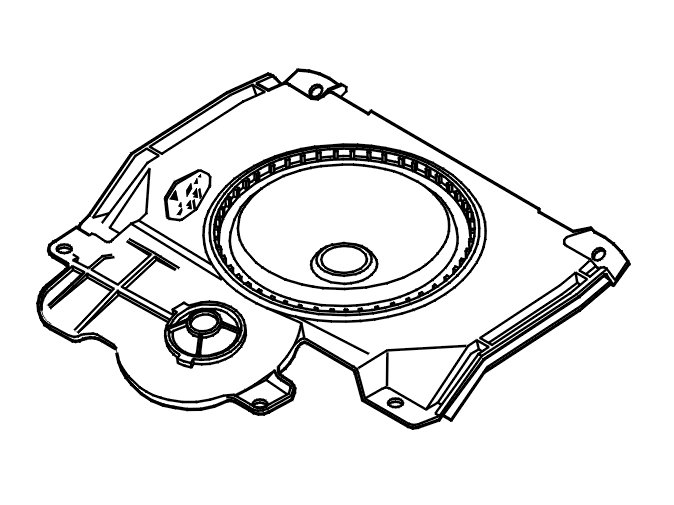

The diagnostic trouble code (DTC) is stored if the Audio module (AUD) registers an open-circuit on the signal cable from the center loudspeaker.
The diagnostic trouble code can be diagnosed when Audio module (AUD) is activated.





Substitute value
- None.

Possible source
- Open-circuit on the signal cable between the center loudspeaker and the control module.
- Open-circuit in the loudspeaker.

Fault symptom[s]
- No sound from loudspeakers
