Engine Mount Rear, Replacing

Engine mount rear, replacing

Special tools:
999 7070 Mounting 999 7070 Mounting
999 7070 Mounting 999 7070 Mounting
999 5460 Lifting hook 999 5460 Lifting Hook

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Preparatory work

Remove:
- the oil filler cap
- the upper front engine casing by pulling it straight up. Fit the oil filler cap.

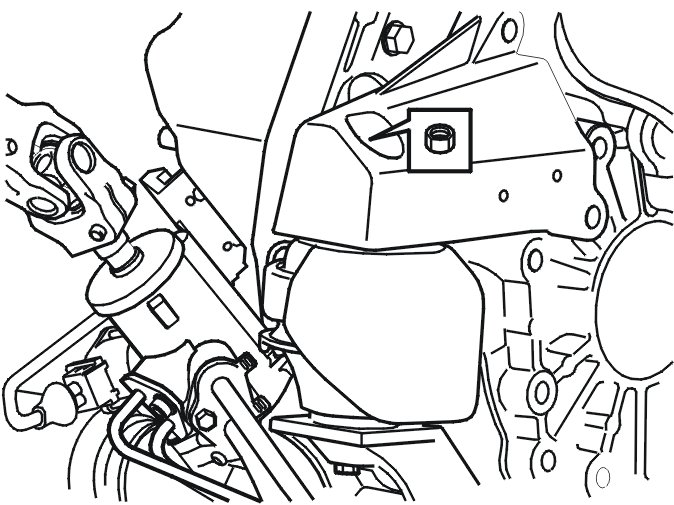

Removing the engine pad




Remove the upper nut for the engine pad.

Removing the bolts to the torque rod




Remove the 2 x screws by the suspension turret on both sides.

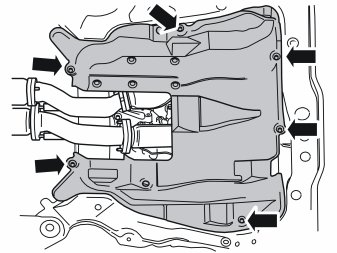

Removing the protective cover under the engine





Remove:
- the bolts, x6
- the protective cover under the engine.

Removing the exhaust pipes between front and rear catalytic converters






Remove:
- both exhaust pipes' nuts
- both exhaust pipes

Installing the lifting tool




Install lifting tool 999 5716 Reading off tool 999 5716 Reading Off Tool converted with kit 999 7070 Mounting 999 7070 Mounting and lifting hooks 999 5460 Lifting hook 999 5460 Lifting Hook.

Caution! Do not raise the engine yet.

Caution! When lifting the engine make sure that the lifting eye does not scratch the torque rod. Tape the torque rod and keep it away from the lifting eye.

Removing the engine pad, continued




Release the heated oxygen sensor (HO2S) connectors, x2, from the subframe.
Fold the protective plate under the steering gear to one side to gain access to the engine pad's lower screw. Remove the engine pad screw.
Raise the engine on the left-hand side of the vehicle approximately 45 mm. Remove the engine pad together with the protective plate.

Installation

Installing the engine pad

Caution! When lowering the engine ensure that the lifting eye does not scratch the torque rod.

Install the engine pad with the protective plate.
Lower the engine.

Install:
- the M10 lower screw for the engine pad.
- the 2 x heated oxygen sensor (HO2S) connectors on the subframe. Reinstall the protective plate under the steering gear.

Installing the exhaust pipes between front and rear catalytic converters


Note! To ensure that there is no exhaust leakage, see: Flanged joint, assembling Removal and Replacement.

Install:
- both exhaust pipes
- both exhaust pipes' nuts M8.

Installing the protective cover under the engine

Install:
- the protective cover under the engine
- the bolts, M8 x6.

Removing the lifting tool
Remove the lifting tool: 999 5716 Reading off tool 999 5716 Reading Off Tool , kit: 999 7070 Mounting 999 7070 Mounting and lifting hooks: 999 5460 Lifting hook 999 5460 Lifting Hook.

Installing the engine pad, continued
Install the M10 upper nut for the engine pad.

Fitting the bolts to the torque rod
Install the 2 x M10 screws, by the suspension turrets on both sides.

Finishing
Remove the oil filler cap.

Install:
- the upper front engine casing
- the oil filler cap.
