Computers/Controls - Erroneous DTC POT-U210000

Title Ghost DTC POT - U210000 set.

Ref No US23892.3.0 en-GB

Issuer -

Partner 3 US 7510 Volvo Cars North America

Func Group 8320 Func Desc boot lid, tailgate with hinge and support

Status Released

Status Date 2010-12-10

Issue Date 2010-12-03

Reference VIDA

Attachment

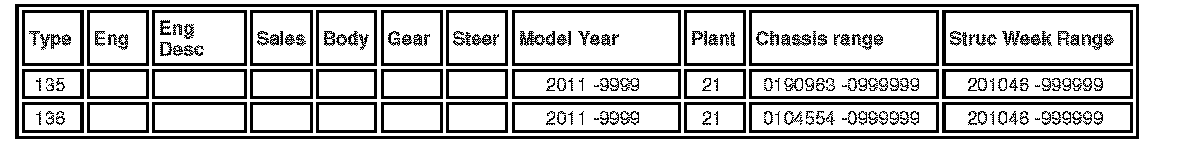

Vehicle Type

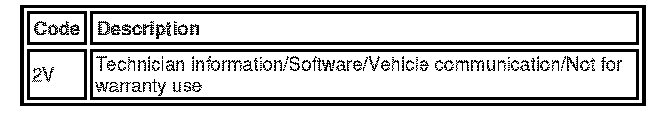

CSC

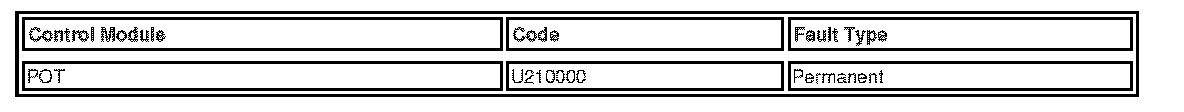

DTC

Text

CSC = Customer Symptom Code

DTC = Diagnostic Trouble Code

Note! If using a printed copy of this Retailer Technical Journal, first check for the latest online version.

DESCRIPTION:

Diagnostic Trouble Code (DTC) POT-U210000 may be visible when performing diagnostics with VIDA.

This is a ghost code.

No symptoms appear for the function of the Power Operated Tailgate (POT).

PRODUCT MODIFICATION:

A Software correction is planned for 2011 Q1.

SERVICE:

Ignore the DTC POT-U210000 don't do any repairs and don't replace any components. If other DTC's appear continue normal fault tracing but disregard DTC POT-U210000
