Return Hose, Power Steering

Return hose, power steering

Operation number: 64531-2






Removal

Note! Removal steps in this procedure may contain installation details.

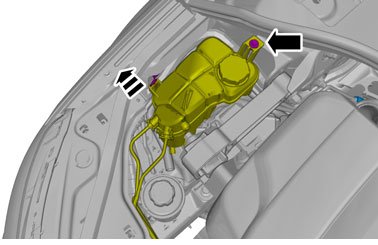

Drain reservoir fluid power steering Refer to: Reservoir fluid power steering, B6304T4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC, B6324S4, TF-80SC AWD Service and Repair

Remove right front wheel Refer to: Wheels Service and Repair

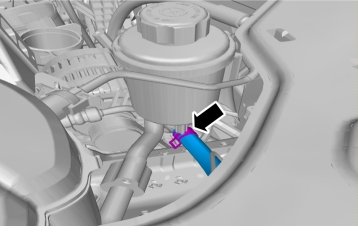

Warning! Be prepared to collect escaping fluid.

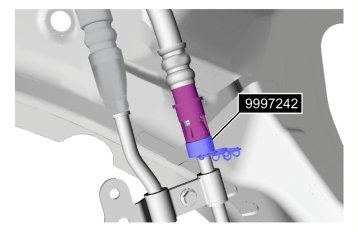

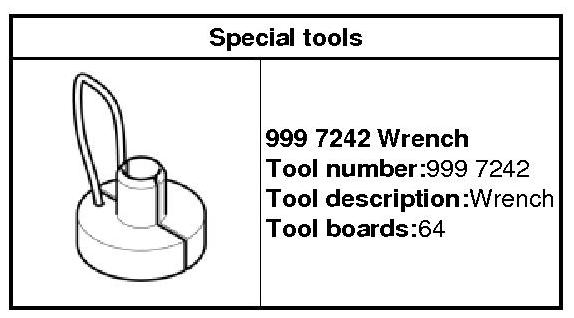

999 7242 Wrench 999 7242 Wrench




Torque: M6, 10 Nm

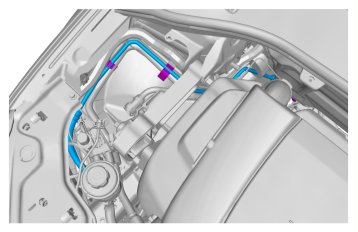

Warning! Be prepared to collect escaping fluid.





Installation

To install, reverse the removal procedure.

Perform power steering system, bleeding air Refer to: Power steering system, bleeding Service and Repair
