Lighting In Door Sill Trims

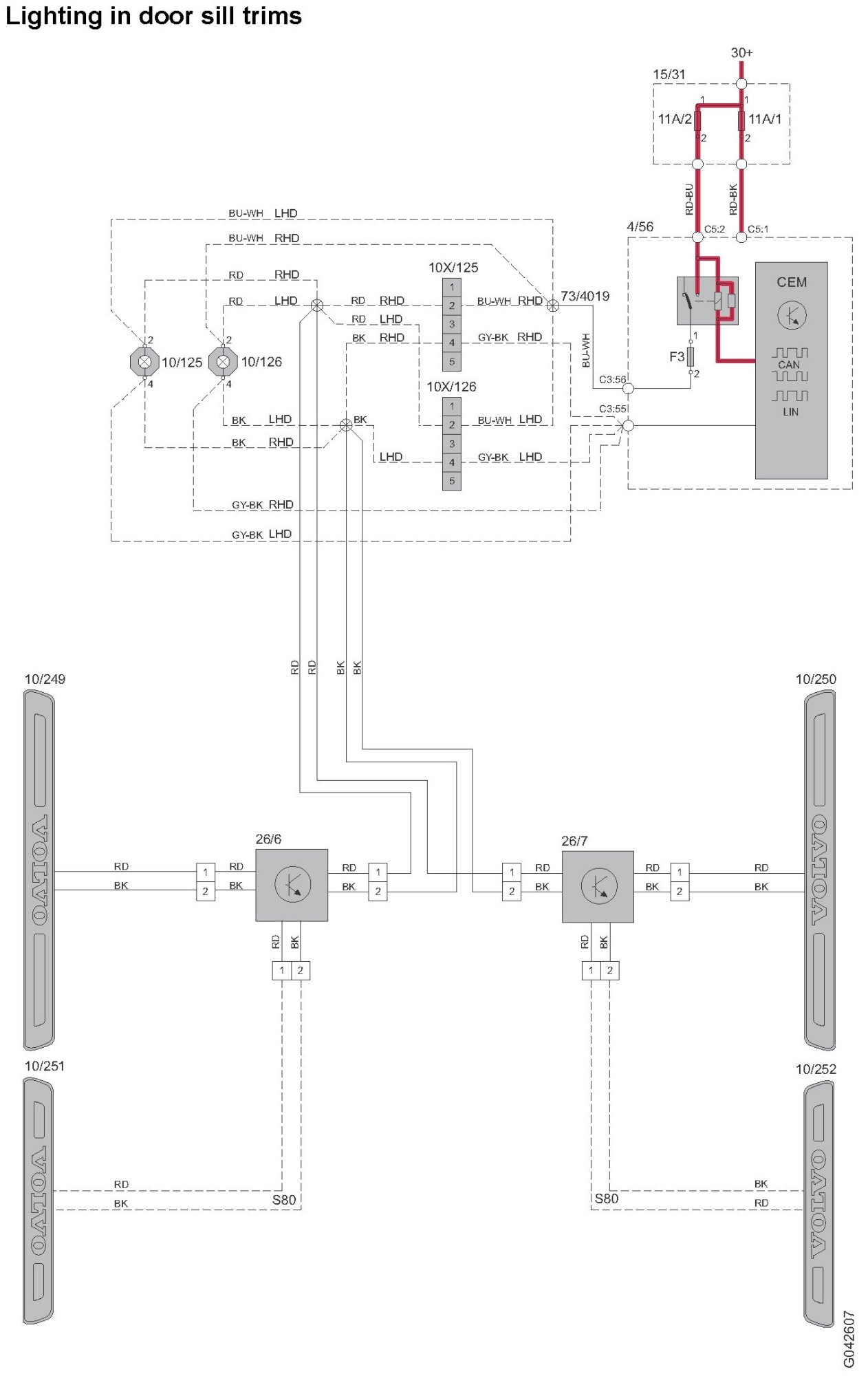

Lighting in door sill trims


Lighting In Door Sill Trims:






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
