A/C - Climate Control Knobs Stiff Operation When Cold
Title CCM knobs stiff to operate in cold conditionRef No US24605.2.1 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 8711
Func Desc control for heater unit
Status Released
Status Date 05-11-2012
Issue Date 05-11-2012
Reference VIDA
Attachment

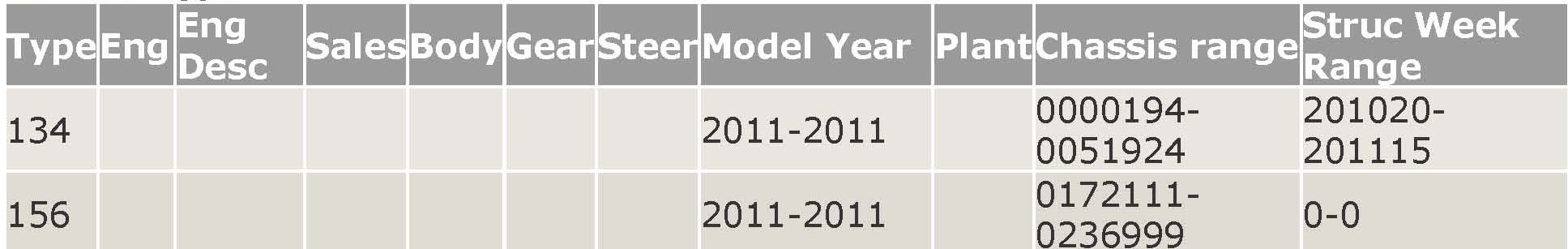

Vehicle Type

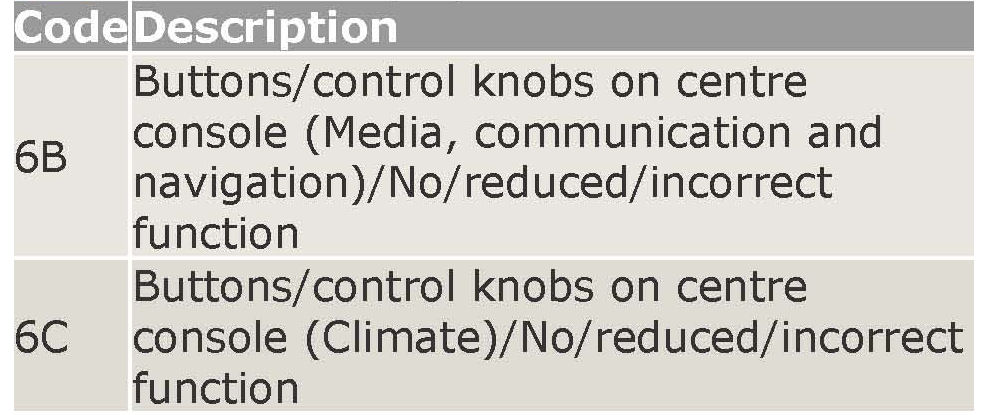

CSC Customer Symptom Codes
DTC Diagnostic Trouble Codes
Text
CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note! If using a printed copy of this Technical Journal, first check for the latest online version.
NOTE!
THIS DOCUMENT SUPERSEDES THE PREVIOUS RETAILER TECHNICAL
JOURNAL *24605* DATED 11-01-2011 Model 156 added. PLEASE UPDATE YOUR FILES.
DESCRIPTION:
The CCM(Climate Control Module) temperature, volume and tuning knobs may be stiff to
operate when the ambient temperature is low. As the car warms up the knobs become
easier to operate.
PRODUCT MODIFICATION:
Chrome ring has been corrected to better fit against the outer knob for temperature,
volume and tuning knobs. To reduce friction between the chrome ring and the outer knob, a special grease has been put on the chrome ring. Improved CCM's were introduced during structure week 201115.
SERVICE:
*If the above described symptom would occur, the CCM may need to be replaced.
VOLVO STANDARD TIMES GUIDE (VSTG) INFO:
Operation number *87153-2* - **Control panel / CCM replace.** - "see VSTG"
* 36004-2*- ** Software control module downloading**- "see VSTG"
- Claims may be submitted under the new car warranty when there is a documented
customer complaint using claim type: 01
- Labor times are valid at the time of release and are subject to change.
