Central Locking Front Doors LHD

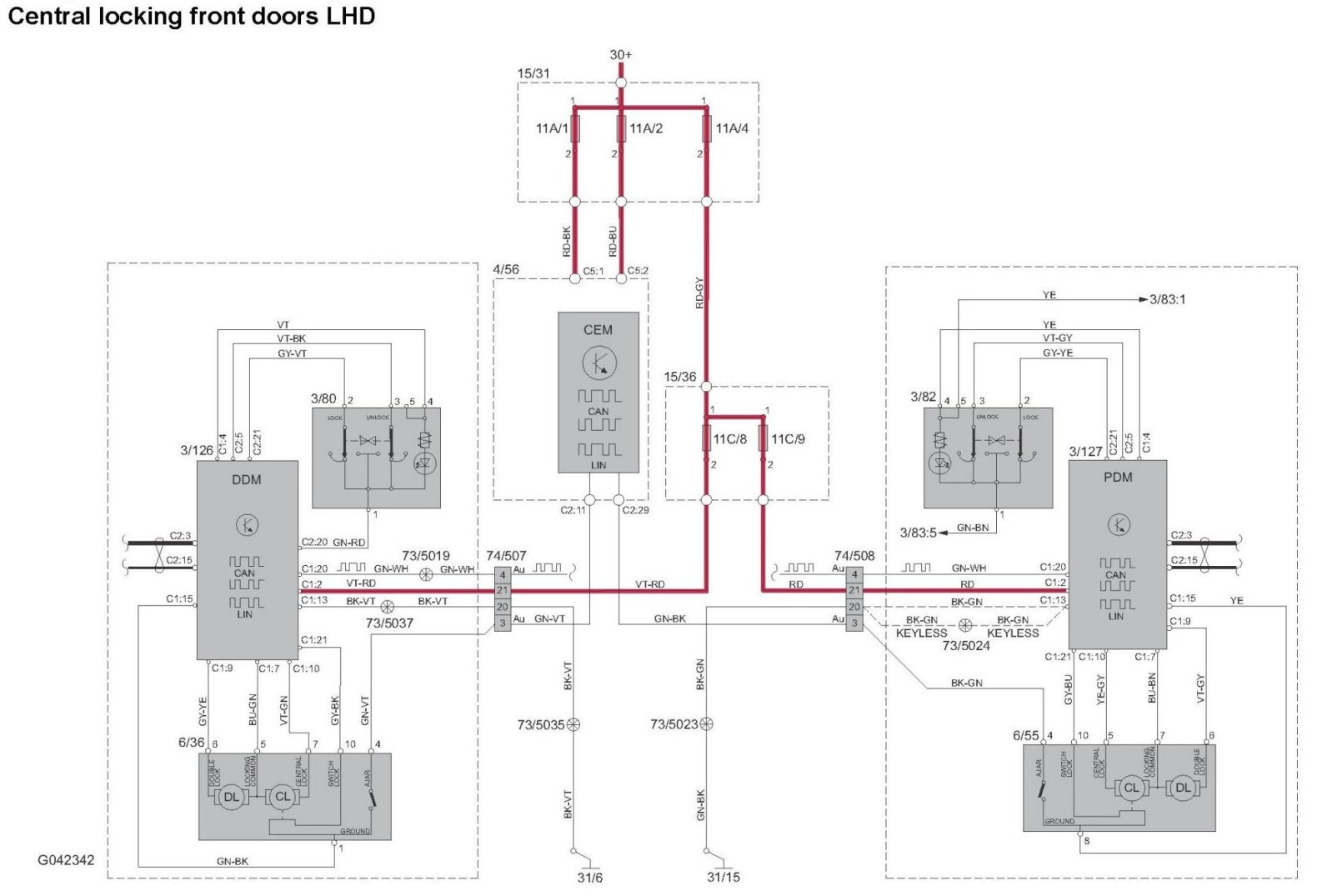

Central locking front doors LHD

Central Locking Front Doors LHD:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
