Rear Door Panel: Service and Repair

Panel rear door

Operation number: 85125-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.














Torque: M5, 5 Nm















Note! Use new components

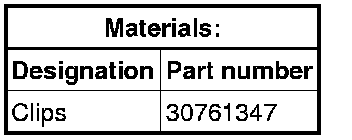

Use: Clips, 30761347

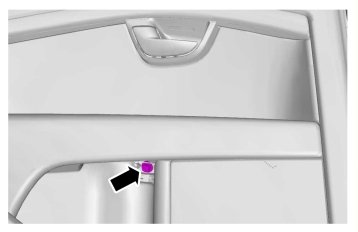

Remove the rotary switch on the rear door. Refer to: Rear door window regulator rotary switch Rear Door Window Regulator Rotary Switch.

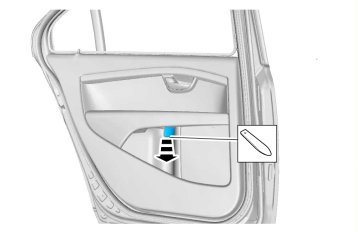

Remove the inner handle.

Installation

To install, reverse the removal procedure
