Front Door Panel: Service and Repair

Panel front door

Operation number: 85123-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

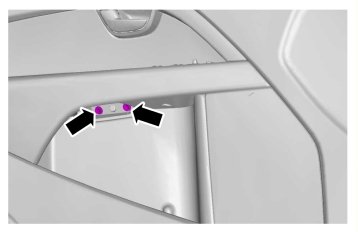

Torque: M5, 5 Nm

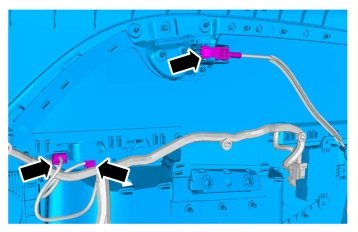

Remove the front side door switch.
Remove the inner handle.

Installation

To install, reverse the removal procedure
