Operation number: 43710-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- bevel gear Refer to: Bevel gear Bevel Gear Bevel gear, B6304T4, TF-80SC AWD, B6324S4, TF-80SC AWD, B6324S5, TF-80SC AWD Bevel Gear
- Accessory Drive Component Bracket Refer to: Accessory Drive Component Bracket, B6324S5, B6324S4 Service and Repair Accessory Drive Component Bracket Service and Repair Accessory Drive Component Bracket Service and Repair Accessory Drive Component Bracket, B6304T4 Service and Repair

Remove the following items:
- Engine support insulator left Refer to: Engine support insulator left, B6304T4, B6324S5, B6324S4 Engine Support Insulator Left
- Front subframe Refer to: Front subframe, B6304T4, TF-80SC AWD, B6324S4, TF-80SC, B6324S4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC Service and Repair
- Driveshaft left Refer to: Driveshaft left, B6304T4, TF-80SC AWD, B6324S4, TF-80SC, B6324S4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC Driveshaft Left
- Drive shaft right

Torque: M6, 10 Nm

Torque: M12, 80 Nm

Remove the following items:
1. Torque: M10, 50 Nm

2. Torque: M8, 24 Nm

Caution! Make sure that all openings are sealed. Use new blanking caps.

Remove the following items:
1. Torque: M8, 24 Nm

2. Torque: M10, 50 Nm

3. Torque: M6, 10 Nm

Remove the following items:
- starter motor Refer to: Starter motor, B6304T4, B6324S5, B6324S4 Service and Repair
- Crankshaft front seal Refer to: Crankshaft front seal, B6304T4, TF-80SC AWD, B6324S4, TF-80SC, B6324S4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC Service and Repair

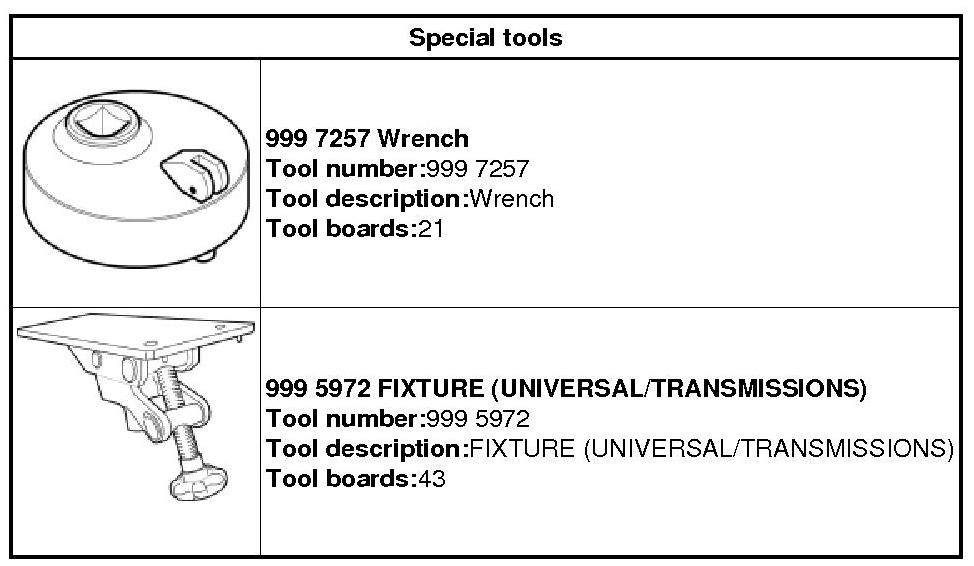

999 7257 Wrench 999 7257 Wrench
Torque: Torque converter to flexplate (screw), 60 Nm

999 5972 FIXTURE 999 5972 Fixture

Torque: M10, 50 Nm

Note! This step is only necessary when installing a new component.

Installation

Perform transaxle, preparations before installing Refer to: Transmission, preparations before installing Transmission, Preparations Before Installing Transmission, preparations before installing, B6304T4, TF-80SC AWD, B6324S4, TF-80SC, B6324S4, TF-80SC AWD, B6324S5, TF-80SC AWD, B6324S5, TF-80SC Transmission, Preparations Before Installing

To install, reverse the removal procedure.
