Transmission Control Module (TCM)

Transmission Control Module (TCM)

Operation number: 43715-2

Removal

Note! Removal steps in this procedure may contain installation details.





Perform battery disconnecting and connecting Refer to: Battery disconnecting and connecting Battery Disconnecting and Connecting

Remove the air filter housing Refer to: Air cleaner housing, B6324S5, B6324S4 Service and Repair Air cleaner housing, B6304T4 Service and Repair

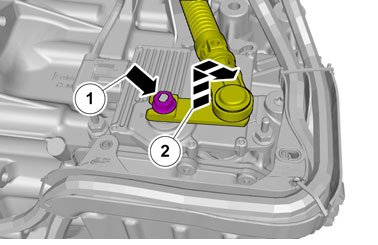

Torque: Gear selector mechanism (nut), 16 Nm




Torque: M8, 24 Nm





Installation





To install, reverse the removal procedure.

Order and download software according to: Programming and Relearning

Calibrate according to: Calibrating position sensor
