Collision Avoidance - Unexpected Braking/Mssg. Displayed

Title Unexpected City Safety Interventions

Ref No US24155.2.1 en-US

Issuer -

Partner 3 US 7510 Volvo Cars North America

Func Group 3872 Func Desc Collision Avoidance

Status Released

Status Date 2011-03-14

Issue Date 2011-03-14

Reference

ATTACHMENT





VEHICLE TYPE

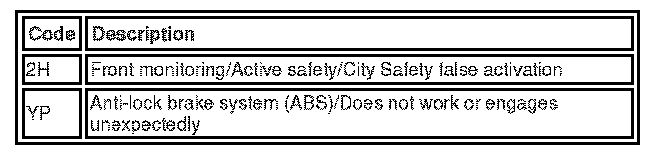

CSC

DTC

Text
CSC = Customer Symptom Code

CVM = Closing Velocity Module

Note:
If using a printed copy of this Retailer Technical Journal first check for the latest online version.

DESCRIPTION:
For customer complaints of unexpected brake intervention with the message "Auto Braking by City Safety" displayed in the instrument cluster a CVM upgrade should be performed.

PRODUCT MODIFICATION:
This software was introduced in production from structure week 2011W05.

VSTG OPERATION NUMBER:
36004-2 Software control module downloading.

- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
