Climate Units

Climate units

Note! Some variation in the illustrations may occur, but the essential information is always correct.

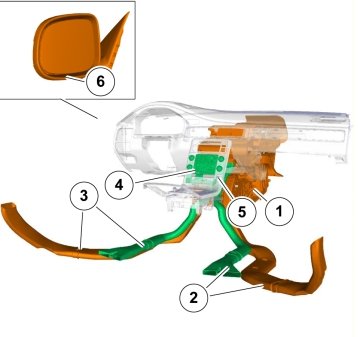

Climate Units - Positioning The Climate Control Unit's Components In The Passenger/External Rear View Mirrors:

Positioning the climate control unit's components in the passenger/external rear view mirrors:
- (1) Climate control unit
- (2) Air distribution, right-hand side
- (3) Air distribution, left-hand side
- (4) Climate control module (CCM), climate control system
- (5) In-vehicle temperature sensor
- (6) Outdoor temperature sensor, left-hand side.
