Steering Mounted Controls Communication Module: Service and Repair

Steering wheel control module

Removal

Note! Removal steps in this procedure may contain installation details.

Caution! Make sure that the clockspring rotor does not rotate.

Vehicles manufactured up to chassis number: 2050099

Remove the following items:
- steering wheel Refer to: Steering wheel Service and Repair
- Panel steering column Refer to: Panel steering column Service and Repair
- Control stalk, left Refer to: Control stalk, left Service and Repair
- Control stalk, right Refer to: Control stalk, right Service and Repair

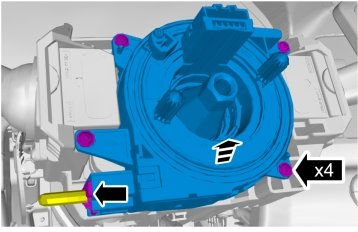

Caution! Make sure that the clockspring pins are not bent or damaged.

Torque: Steering wheel control module to steering column, 0.9 Nm

Vehicles manufactured from chassis number: 2050099

Remove the following items:
- steering wheel Refer to: Steering wheel Service and Repair
- Panel steering column Refer to: Panel steering column Service and Repair





Caution! Make sure that the clockspring pins are not bent or damaged.

Installation

To install, reverse the removal procedure.

Order and download software according to: Programming and Relearning
