Fog Lamps

Fog lamps

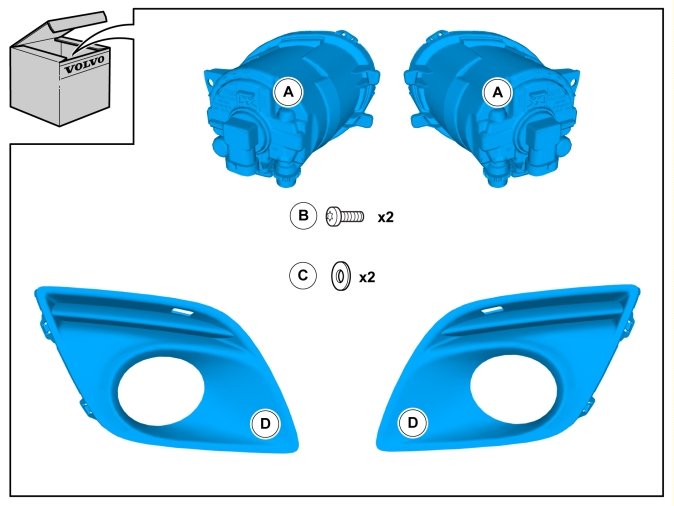

INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text






Fog lamps

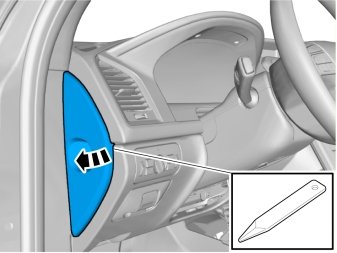

Caution! Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

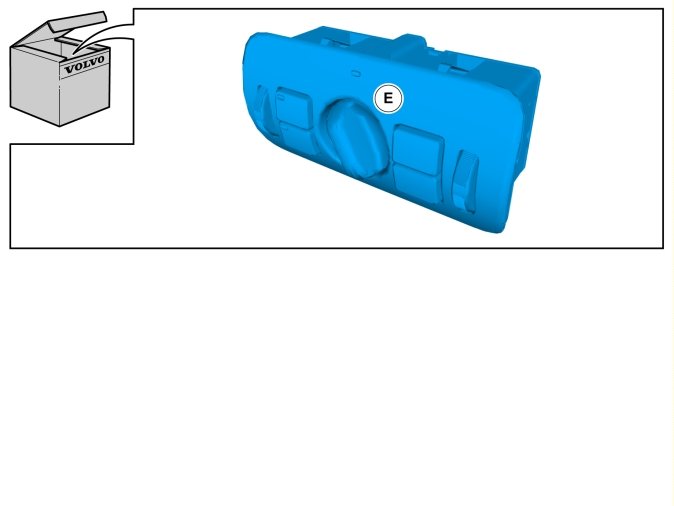

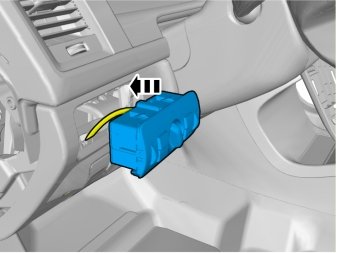

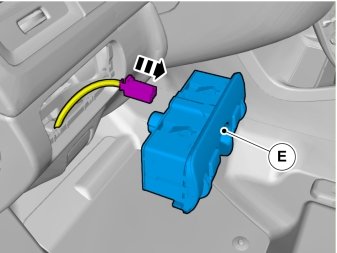

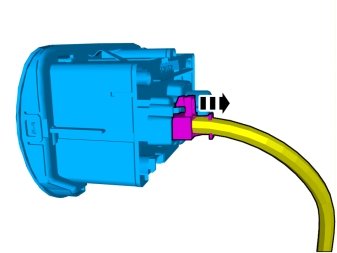

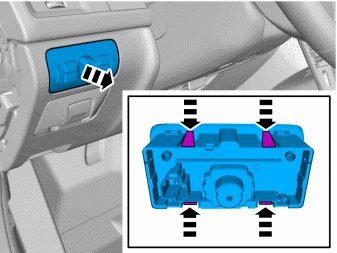

- Remove the switch by pressing the four catches down from the inside and pressing the switch out at the same time.

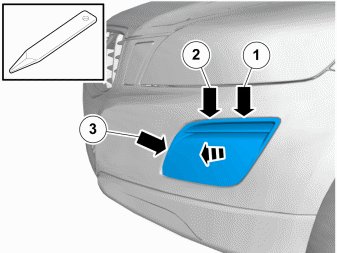

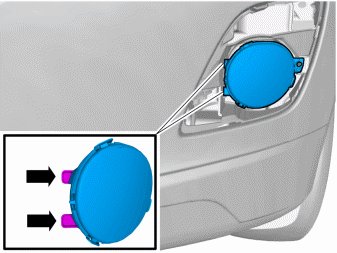

- Remove the cover on the bumper cover by pressing in the hidden hooks using a weatherstrip tool.
- Carry out on both sides.

Caution! Do not damage the paint on the bumper cover.





- Raise the car.

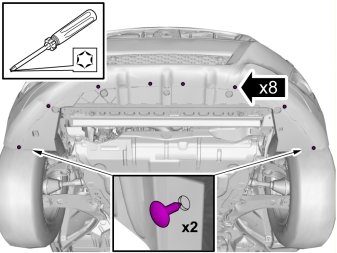

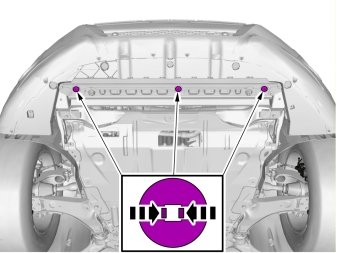

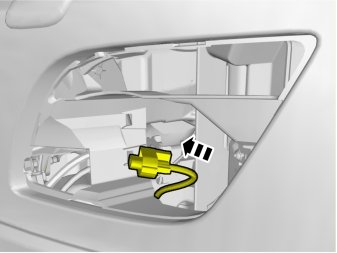

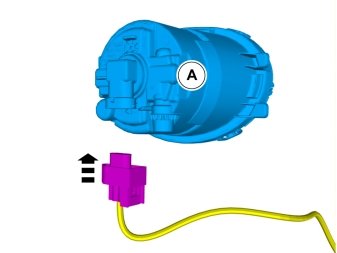

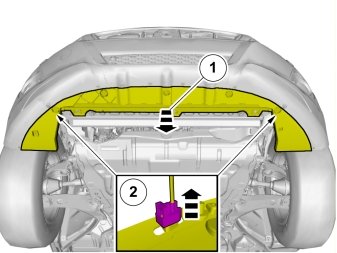

- Detach the air baffle to access the routed connectors.

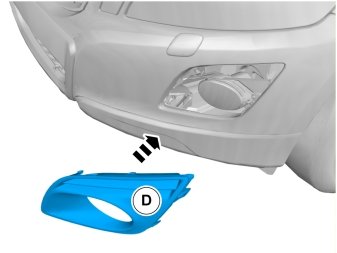

- Insert the two baffles in corresponding cutouts on the bumper cover.





- Repeat the method steps for the other fog lamp.

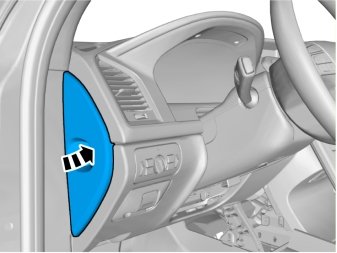

- Reinstall the removed components in reverse order.





- Download the software for the accessory's function. Programming and Relearning





- Switch on the fog lamp and check its setting.

In the event of adjustment:

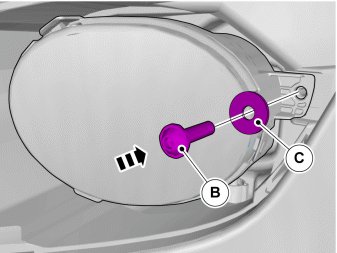

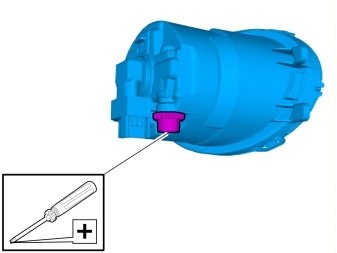

- Remove the fog lamp and adjust the adjustment screw.





- Carry out on both sides.
